Remove/install throttle valve actuator - AR07.51-P-1401LFA
ENGINE 276.8 in MODEL 217, 222
| Remove/install | |||
| 1 | Remove upper engine cover | ||

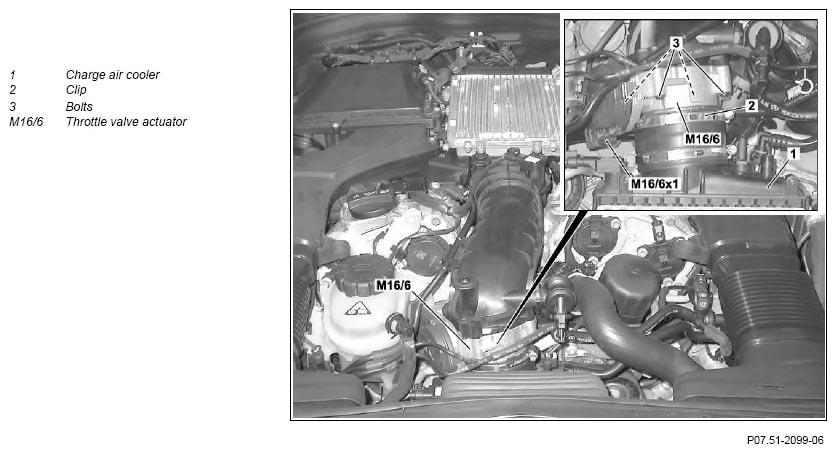

| 2 | Detach charge air cooler (1) and pull to the front with attached coolant hoses | AR09.41-P-6819LFA | |
| 3 | Disconnect electrical connection at throttle valve actuator (M16/6) | ||
| 4 | Remove screw/bolt (3) | *BA09.20-P-1004-01T | |
| 5 | Remove throttle valve actuator (M16/6) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
INTAKE MANIFOLD
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA09.20-P-1004-01T | Bolt, air duct housing and throttle valve actuator to air intake pipe | Nm | 7 |
