Remove/install charge air temperature sensor - AR07.52-P-1466LFB

ENGINE 157, 278 in MODEL 217

ENGINE 157, 278 in MODEL 222

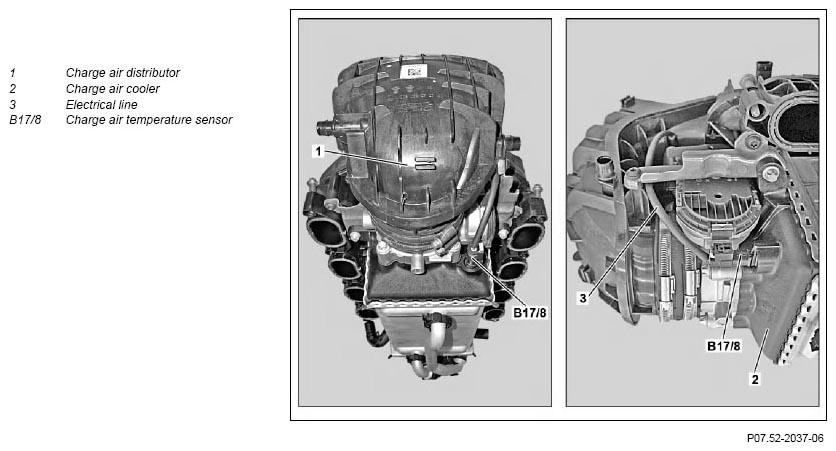

Fig 1: Charge Air Temperature Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove charge air distributor (1)		AR09.41-P-1310LFB
2	Disconnect electrical connection for electrical line (3) on charge air temperature sensor (B17/8)
3	Remove charge air temperature sensor (B178)	Check for correct seating of sealing ring between charge air temperature sensor (B17/8) and charge air cooler (2).
4	Install in the reverse order
