Remove/install roller sun blind guide rail - AR77.21-P-0231LF

MODEL 222

with CODE 398 (Panoramic roof with MAGIC SKY CONTROL)

MODEL 222

with CODE 413 (Automatic panoramic sliding sunroof)

Rear roller sun blind guide rail

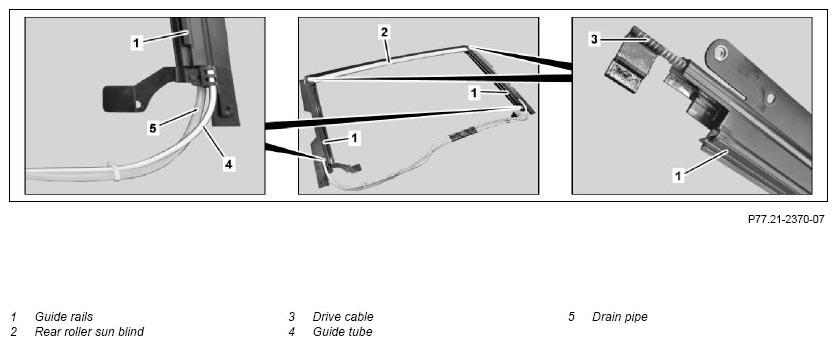

Fig 1: Roller Sun Blind Guide Rail Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove roller sun blind (2) at rear		AR77.21-P-0201LF
2	Pull drive cable (3) out of left and right guide rail (1)
3	Remove left and right guide rail (1) from guide tube (4)	Do not push outlet pipe (5) too deeply into guide rail (1). Otherwise the outlet pipe (5) can be damaged and generates noises during operation. Carefully push guide tube (4) into guide rail (1). Otherwise the guide tube (4) can be damaged on the running-in of drive cable (3) and generates noises during operation. Ensure that the outlet pipe (5) is seated correctly in the guide rail (1).
4	Install in the reverse order
