Remove/install antenna - AR82.70-P-8951GQS

MODEL 166.0 with CODE Z04 (Light armoring)

MODEL 166.0 with CODE Z05 (B5 armoring on special protection version)

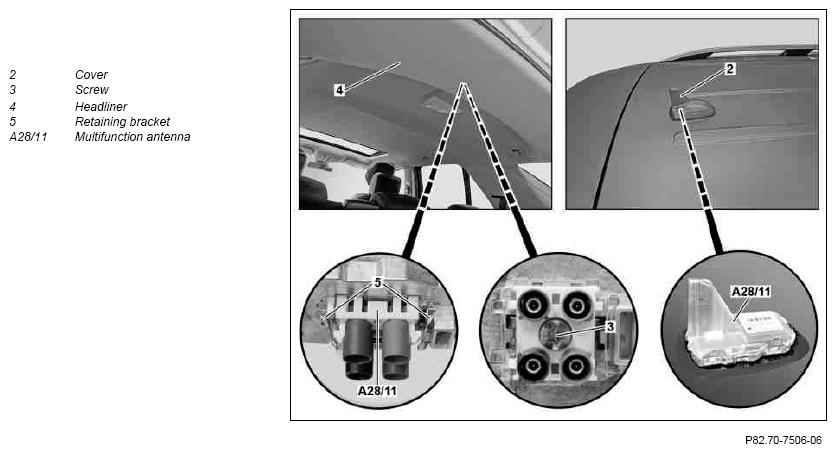

Fig 1: Identifying Antenna Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

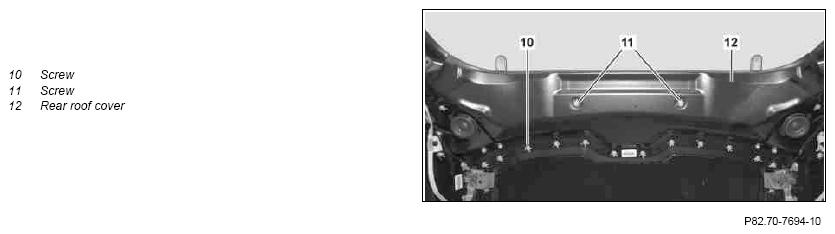

Fig 2: Identifying Antenna Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

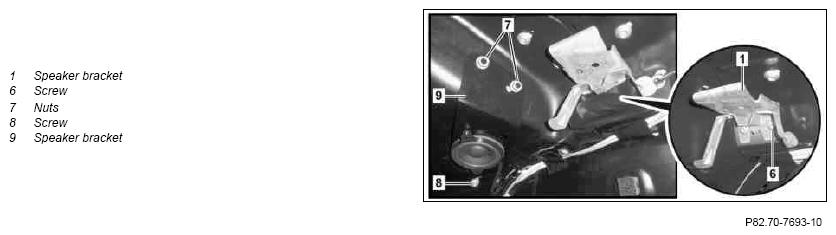

Fig 3: Identifying Antenna Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (2) for multifunction antenna (A28/11)		AR82.70-P-8952EW
2	Remove headliner	MODEL 166.0 with CODE Z05 (B5 armoring on special protection version) Remove/install rear roof paneling	AR68.30-P-7608GQ
		Remove/install headlinerMODEL 166.0 with CODE Z05 (B5 armoring on special protection version)	AR68.30-P-4300GQS
3	remove screw/bolt (8)	Bolt, cover to body (headliner speaker bracket)	*BA82.62-P-1001-04C
4	Remove nuts (7)	Nut, cover to body (headliner speaker bracket)	*BA82.62-P-1002-04C
5	Disconnect electrical connector from speaker
6	Remove speaker bracket (9) with speaker
7	remove screw (10)
8	Loosen screw/bolt (11)
9	Cut through adhesive seam with inner cutting line	Remove glue residue Apply new glue. Route new cutting line along inner circle of adhesive seam and route ends towards the outside overlapping through the adhesive seam.
10	Remove bolt (11)
11	Remove rear roof cover (12)	Helper required.
12	Disconnect electrical connectors on the multifunction antenna (A28/11)	Release electrical connectors at multifunction antenna (A28/11) with an extraction hook.
		Extraction hook	Figure
13	Loose screw/bolt (3) until retaining brackets (5) are released	Screw/bolt (3) remains at multifunction antenna (A28/11).
		Bolt, antenna base to vehicle roof	*BA82.62-P-1001-01D
14	Remove multifunction antenna (A28/11) upward from body
15	Install in the reverse order

Fig 4: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
