Remove/install rear roof paneling - AR68.30-P-7608GQ

MODEL 166 with CODE Z05 (B5 armoring on special protection version)

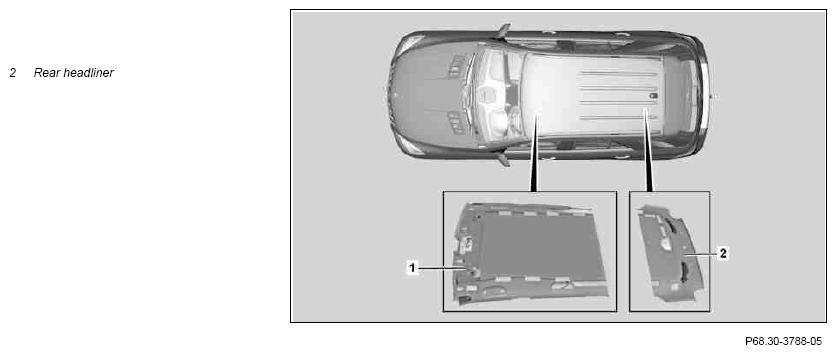

Fig 1: Identifying Rear Roof Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open liftgate
2	Remove rear C-pillar paneling	MODEL 166 (except 166.8) with CODE Z05 (B5 armoring on special protection version)	AR68.30-P-4490GQS
3	Detach paneling on D-pillars	MODEL 166 (except 166.8) with CODE Z05 (B5 armoring on special protection version)	AR68.30-P-4495GQ
4	Remove lashing eye (3)	If installed.
5	Remove edge guard in area of headliner (2) from body
6	Detach headliner (2) from roof frame and remove from vehicle	Long wedge	Figure
7	Check headliner (2)	Check whether all magnets are present on headliner (2). If loose magnets are present, remove old glue residues. Glue magnets to present positions on headliner (2).
		2-component adhesive/Devcon 5 Min. Epoxy	*BR00.45-Z-1072-02A
8	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
