Retrofit illumination for running boards - AZ82.10-P-0015GQ

MODEL 166.0## (except 166.074) 1# with CODE (494) USA version with CODE (846) Running boards

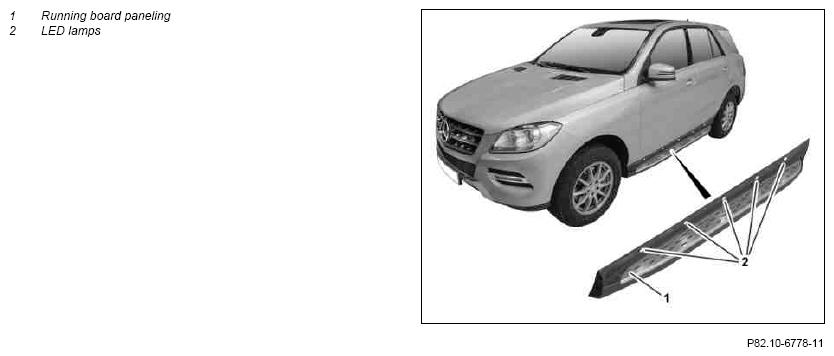

Fig 1: Identifying LED Lamps And Running Board Paneling

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove left and right trunk lining		AR68.30-P-4800GQ
2	Remove right rear seat cushion		AR91.12-P-1020GQA
3	Remove left and right running board		AR88.30-P-2400GQ
4	Remove left and right fender liners in rear fender		AR88.10-P-1400GQ
	Install
5	Install LED lamps (2) into left and right running board trim (1)	Cordless drill/driver	AZ82.10-P-0015-04GQ
6	Retrofit wiring harness for LED lamps on wheel arch and connecting wiring harness for LED lamps		AZ82.10-P-0015-02GQ
		Sealant	*BR00.45-Z-1003-01A
7	Install remaining parts
8	Document retrofitted equipment through VeDoc	Attach "Illumination for running boards retrofitted as per AZ82.10-P-0015GQ " note under field organization text to design group 82 and design group 88.
9	Perform function test of running board illumination	The running board illumination must switch on with the interior illumination and go out again when the engine is started.
