Remove/install side step - AR88.30-P-2400GQ

MODEL 166 with CODE 846 (Running boards)

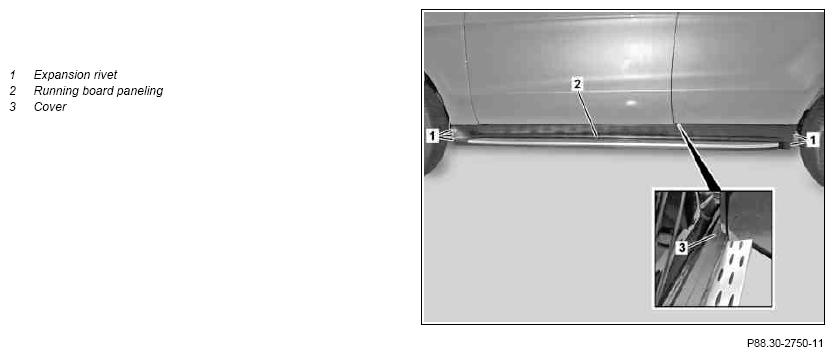

Fig 1: Identifying Vehicle Side Step Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

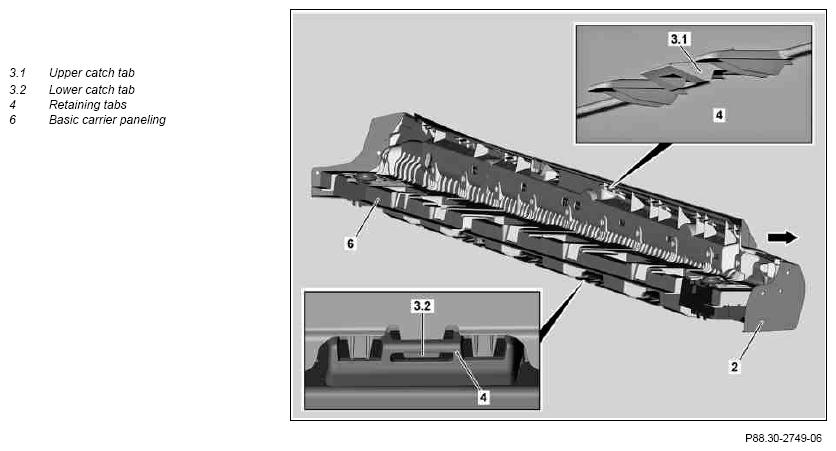

Fig 2: Identifying Vehicle Side Step Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

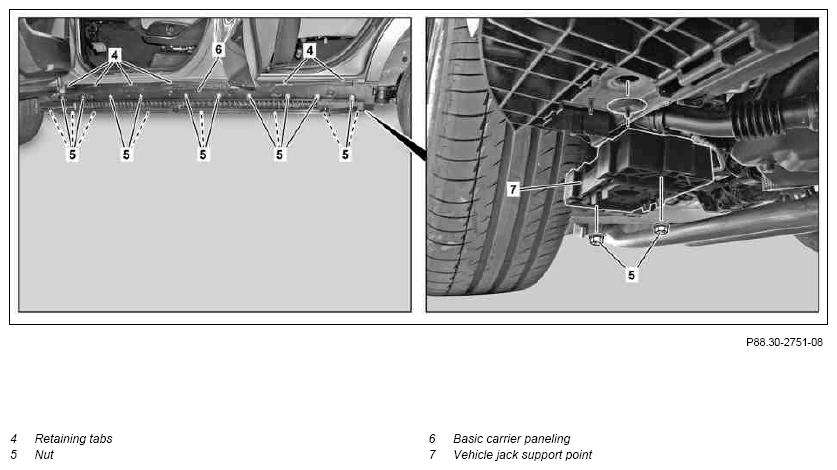

Fig 3: Identifying Vehicle Side Step Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove expansion rivets (1)
2	Unclip running board paneling bottom section (2)	Unlock catch tab (3.2) by pulling at bottom section of running board paneling (2).
3	Open door
4	Unclip cover (3)	Long wedge	Figure
5	Unclip running board paneling top section (2)	Unlock catch tab (3.1) by pulling at top section of running board paneling (2).
6	Unscrew nuts (5) from vehicle jack support point (7)
7	Remove jack support point (7)
8	Unscrew nuts (5)	Removal:  Only loosen nuts (5) on running board paneling bottom section (2).
9	Remove running board basic carrier (6)
10	Install in the reverse order

Fig 4: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
