Removing and installing trim panel at D-pillar - AR68.30-P-4495GQ

MODEL 166.0

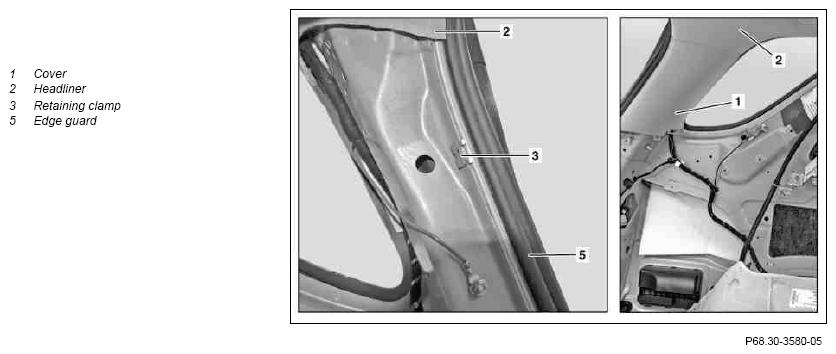

Fig 1: Identifying D-Pillar Trim Panel Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove paneling from C-pillar	MODEL 166 (except 166.8) without CODE Z05 (B5 armoring on special protection version)	AR68.30-P-4490GQ
2	Remove edge guard (5) from paneling (1) on D-pillar
3	Unclip paneling (1) on D-pillar from side wall	Make sure that retaining clip (3) is seated properly.
		Mounting wedge	Figure
4	Pull paneling (1) on D-pillar downward out of headliner (2) and remove
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
