Replace Brake Hoses - AR42.10-P-0013GZ
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 164, 166, 292

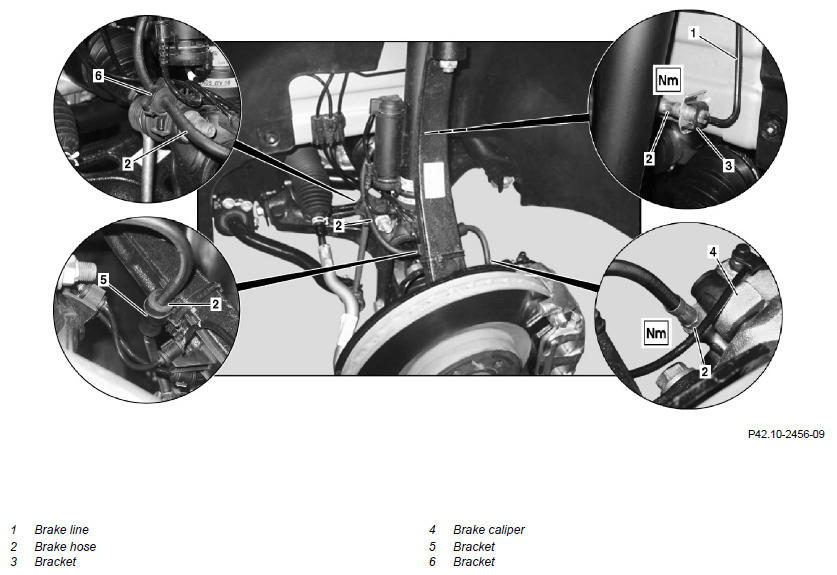

Shown on front axle of model 164

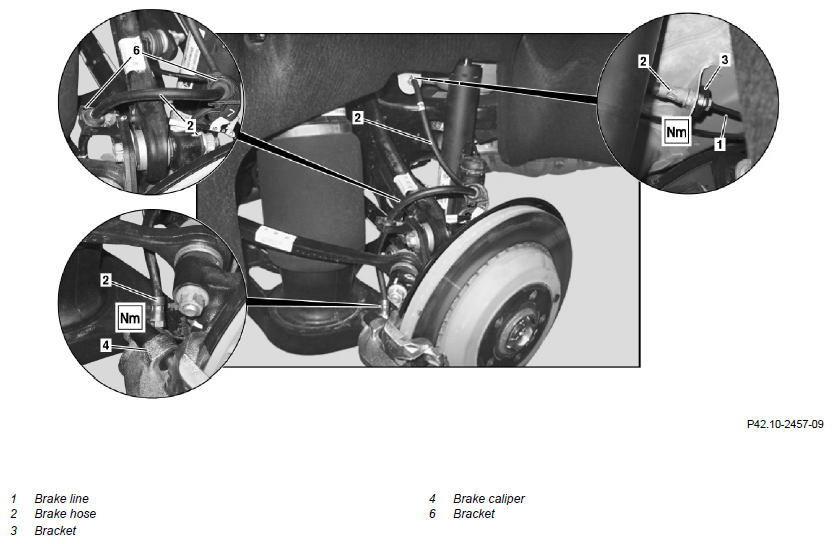

Rear axle shown on model 164

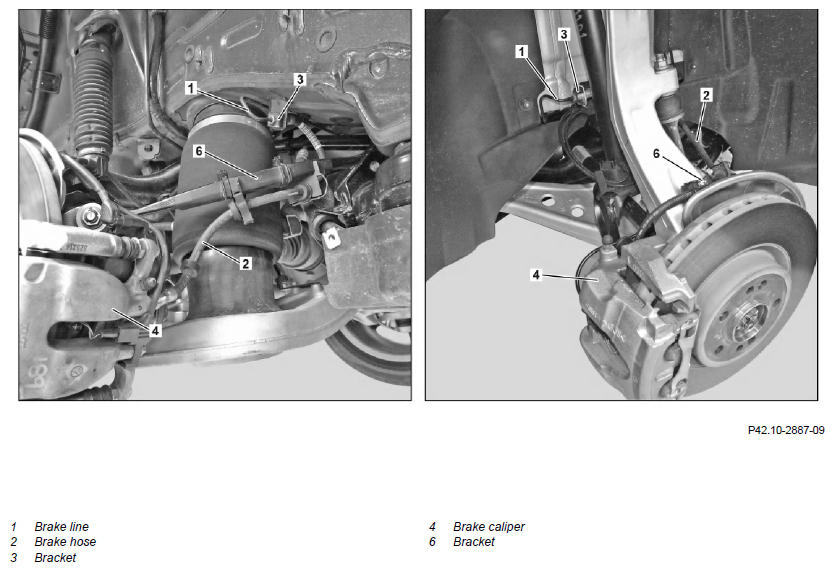

Shown on model 166
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on installing brake hoses | AH42.10-P-9406-01GZ | ||
| Remove/install | |||
| 1 | Detach corresponding complete wheel | ||
| Model 164 | AP40.10-P-4050Z | ||
| Model 166 | AP40.10-P-4050EW | ||
| Model 292 | AR40.10-P-1100GQC | ||
| Clean | |||
| 2 | Clean the area around the brake line (1) and brake hose (2) in the area of the separation points | Even the smallest particles of dirt, introduced into the hydraulic components, can lead to malfunctions and a total failure of the SBC system. |
|
| 3 | Detach brake line (1) from brake hose (2) | *BA42.10-P-1002-04J | |
In model 166 the brake caliper (4) on the rear axle may not be drained. ↓ Otherwise it must be replaced. |
Fig 3 | ||
| 4 | Seal exposed connections | Seal connections immediately. Otherwise, escaping brake fluid may damage adjacent components. |
Fig 4 |
| 5 | Detach brake hose (2) from bracket (6) | Model 166, 292 | |
| 6 | Unscrew brake hose (2) from brake caliper (4) | *BA42.10-P-1001-04J | |
| Fig 1 | |||
| 7 | Seal exposed connections | Seal connections immediately. Otherwise, escaping brake fluid may damage adjacent components. |
Fig 4 |
| 8 | Detach brake hose (2) from bracket (5) | Model 164 on front axle. |
Fig 2 |
| 9 | Detach brake hose (2) from bracket (6) | Model 164 | |
| 10 | Use water to rinse off any escaped brake fluid | ||
| 11 | Install in the reverse order | ||
| Bleed brake system | |||
| 12 | Bleed brake system | Model 164 | AR42.10-P-0010GZ |
| Model 166, 292 | AR42.10-P-0010CW | ||
| Check | |||
| 13 | Check brake system for leaks | AR42.10-P-0100-01GZ | |
| 14 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 164.1/8 | Model 166 | |
|---|---|---|---|---|
| BA42.10-P-1001-04J | Brake hose to brake caliper | Nm | 22 | 24 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA42.10-P-1001-04J | Brake hose to brake caliper | Nm | 24 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 164.1/8 | Model 166 | |
|---|---|---|---|---|
| BA42.10-P-1002-04J | Brake line to brake hose | Nm | 15 | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA42.10-P-1002-04J | Brake line to brake hose | Nm | 16 |
