Remove/install dashboard top section - AR68.10-P-1020GQ
MODEL 166
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01M | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| 1 | Remove left instrument panel bottom section | AR68.10-P-1505GQ | |
| 2 | Remove Audio/COMAND display | ||
| See Remove radio display. | AR82.60-P-7722GQ | ||

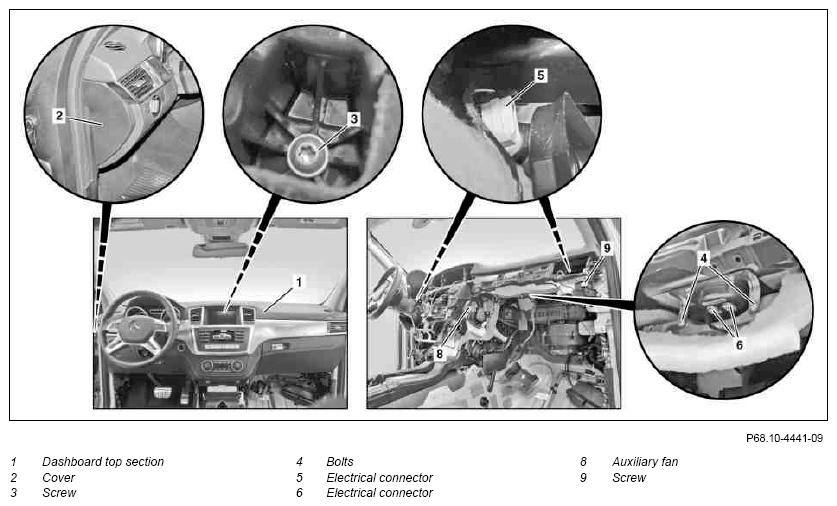

| 3 | Remove side cover (2) | ||
| 4 | Remove instrument cluster | AR54.30-P-6015GQ | |
| 5 | Remove loudspeaker in instrument panel | AR82.62-P-7833GQ | |
| 6 | Unscrew bolt (3) from instrument panel top section (1) to instrument panel carrier | ||
| 7 | Disconnect electrical connectors (5) from temperature sensors on side air vents | ||
| 8 | Disconnect electrical connectors (6) from passenger airbag | ||
| 9 | Unscrew bolt (9) on fuse box from instrument panel top section (1) | ||
| 10 | Unscrew bolts (4) on passenger airbag mount from instrument panel carrier | ||
| 11 | Remove additional fan (8) | AR82.85-P-0005GQ | |

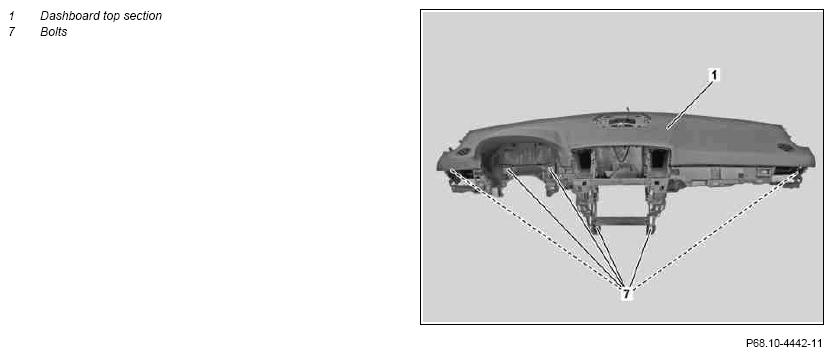

| 12 | Unscrew bolts (7) from instrument panel top section (1) | ||
| 13 | Remove dashboard top section (1) | ||
| 14 | Install in the reverse order |
