Remove/install front spring - AR32.20-P-0200GQ

MODEL 166 except CODE (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS)

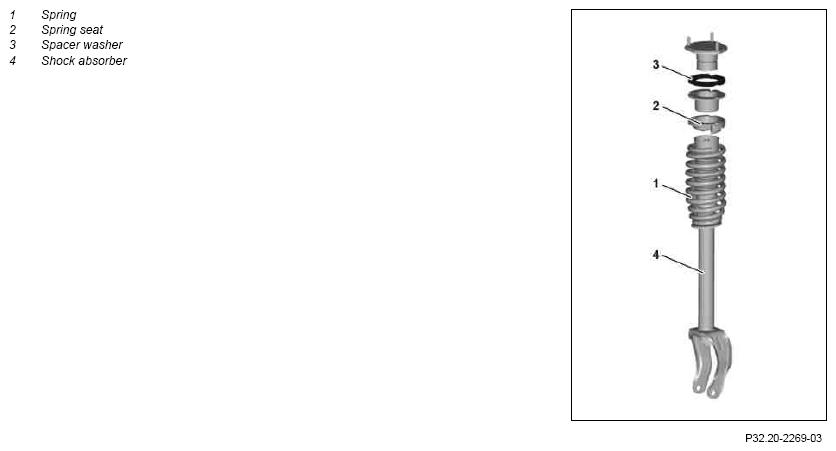

Fig 1: Identifying Front Spring Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove suspension strut		AR32.25-P-1017GQ
	Disassemble
2	Disassemble suspension strut		AR32.25-P-1018GZ
3	Replace spring (1) and spring seat (2)	Assign spacer washers (3):
		See Adjust vehicle level by changing spacer rings (3).	AR40.20-P-0301-02GQ
	Checking
4	Check shock absorber (4)	Check for damage and oil fouling, replace if necessary.	AR32.25-P-0121A
	Assemble
5	Assemble suspension strut		AR32.25-P-1018GZ
	Install
6	Install suspension strut		AR32.25-P-1017GQ
7	Inspect headlamp adjustment, correct if necessary.		AP82.10-P-8260GZ
