Remove/install active roll stabilization control unit - AR32.34-P-5001GQ
MODEL 166 with CODE 468 (ACTIVE CURVE SYSTEM)
Shown on model 166.057

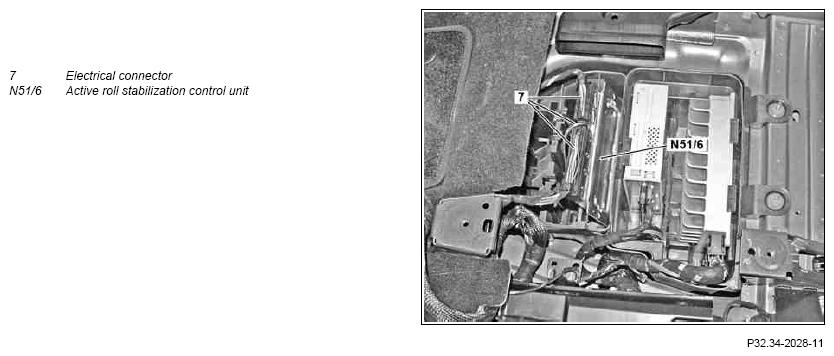

Fig 1: Identifying Active Roll Stabilization Control Unit Remove/Install Components - Shown On Model 166.057
Shown on model 166.057

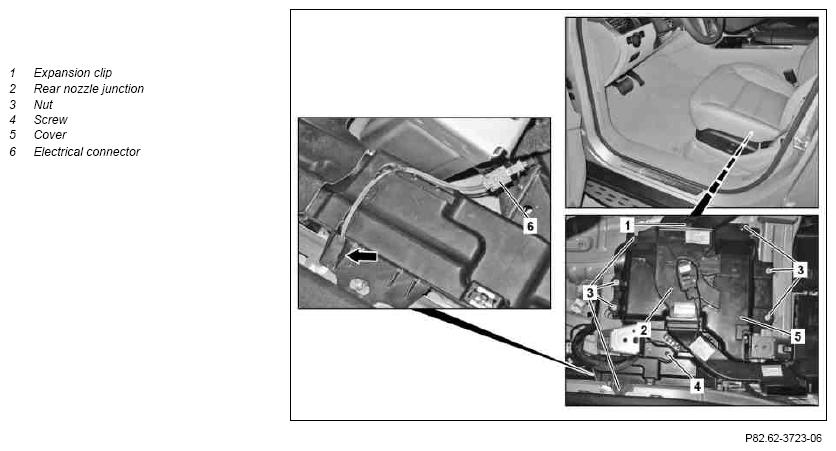

Fig 2: Identifying Active Roll Stabilization Control Unit Remove/Install Components - Shown On Model 166.057
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Lift floor covering on the left in rear compartment | MODEL 166.8 | AR68.20-P-4800GQX |
| MODEL 166.0 | AR68.20-P-4800GQ | ||
| 3 | Remove bottom paneling from left B-pillar | AR68.30-P-4700GQ | |
| 4 | Remove expansion clip (1) | ||
| 5 | Disconnect electrical connection (6) | Vehicles with CODE 876 (Interior lights package) |
|
| 6 | Remove rear nozzle junction (2) | ||
| 7 | Unscrew nuts (3) and remove bolt (4) | ||
| 8 | Take off cover (5) | ||
| 9 | Unlock and detach electrical connectors (7) from active roll stabilization control unit (N51/6) | ||
| 10 | Release active roll stabilization control unit (N51/6) and remove upwards | ||
| 11 | Install in the reverse order |
