Remove/install paneling on B-pillar - AR68.30-P-4700GQ

MODEL 166

Shown on vehicle with belt fitting tensioner

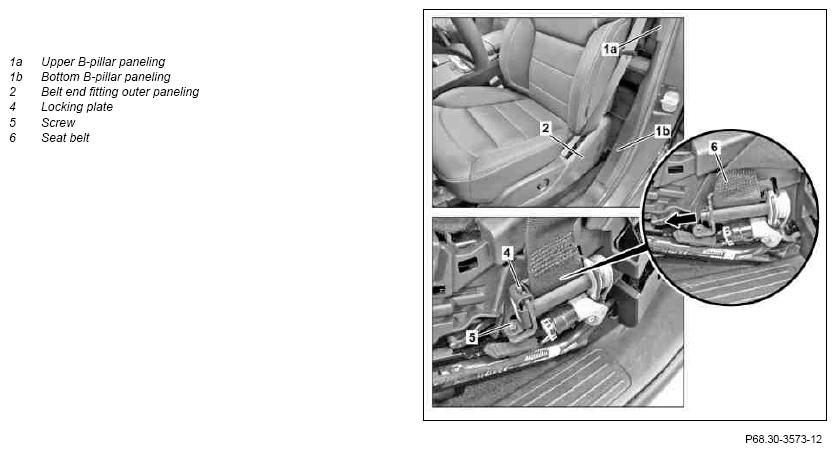

Fig 1: Removing/Installing Paneling On B-Pillar - Shown On Vehicle With Belt Fitting Tensioner (1 Of 2)

Courtesy of MERCEDES-BENZ USA

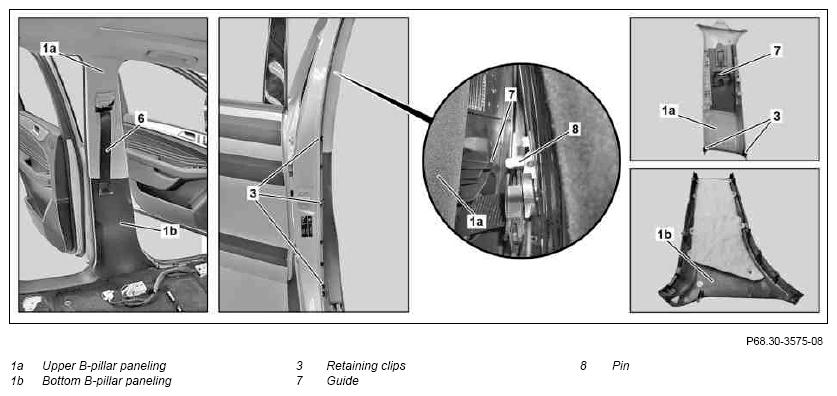

Fig 2: Removing/Installing Paneling On B-Pillar - Shown On Vehicle With Belt Fitting Tensioner (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front and rear door sill		AR68.30-P-4100GQ
2	Position front seat backrest vertically and front seat toward front
3	Remove belt end fitting outer paneling (2)		AR91.10-P-1200GQ
4	Remove bolt (5)	On vehicles with belt fitting tensioner
			*BA91.40-P-1002-01R
5	Remove tab washer (4)	On vehicles with belt fitting tensioner
6	Pull seat belt (6) toward front (arrow) out of guide on front seat	On vehicles with belt fitting tensioner Do not twist seat belt (6).
7	Unscrew bolt from belt end fitting	On vehicles without belt end tensioner
			*BA91.40-P-1001-01R
8	Loosen edge guard at front and rear in area of upper B-pillar paneling (1a) and lower B-pillar paneling (1)
9	Unclip upper B-pillar paneling (1a) from B-pillar	Ensure that the retaining clamps (3a) are correctly seated.
			Figure
10	Pull upper B-pillar paneling (1a) downward out of guide on roof and remove	It is necessary to insert guide (7) into bolt (8).
11	Unclip lower B-pillar paneling (1b) on B-pillar and remove	Ensure that retaining clips (3) are seated correctly.
			Figure
12	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
