Remove/install front axle shafts - AR33.30-P-0620GQ

MODEL 166

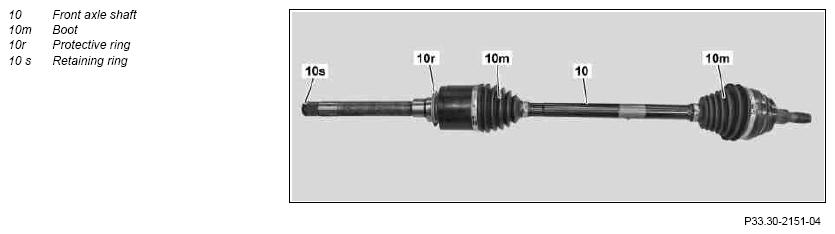

Fig 1: Identifying Front Axle Shafts Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

14.12.11

Detach suspension strut from lower control arm, added

Operation step 2

	Remove/install
1	Remove steering knuckle		AR33.25-P-0400GZ
2	Remove suspension strut from lower control arm	Only tighten bolted connection for the chassis components when in a ready-to-drive condition.
			*BA32.25-P-1002-01O
3	Pull front axle shaft (10) out of front axle transmission and remove	Do not damage boots (10m) and protective ring (10r) of front axle shaft (10) and radial shaft sealing ring in the front axle transmission! Replace the circlip (10s).
4	Install in the reverse order

FRONT AXLE SHOCK ABSORBER

Number	Designation			Model 166
BA32.25-P-1002-01O	Self-locking nut, shock absorber to wishbone	Stage 1	Nm	100
		Stage 2	∠°	180
