Remove/install steering wheel - AR46.10-P-0100GW

MODEL 463 as of model year 2013/facelift 2012

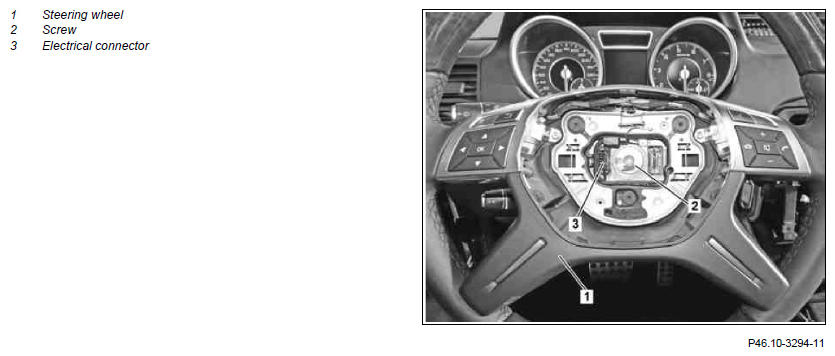

Fig 1: Steering Wheel Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Turn steering wheel (1) into center position	Front wheels in straight-ahead position.
2	Remove airbag unit		AR91.60-P-0660GW
3	Remove bolt (2), counterholding the steering wheel (1) in the process	Install new bolt (2).
			*BA46.10-P-1001-02A
4	Mark position of steering wheel (1) relative to steering shaft
5	Disconnect electrical connector (3)
6	Remove steering wheel (1)
7	Install in the reverse order
8	Conduct a road test	Perform following tests: Steering wheel (1) position: If the steering wheel (1) is crooked, adjust it by max. one tooth. If displacement is more than one tooth, problem-free canceling of flashers is not guaranteed. Supplemental restraint system indicator lamp (SRS): For a full steering angle in both directions, the Supplemental Restraint System (SRS) indicator lamp must not light up.

STEERING WHEEL

Number	Designation		Model 463
BA46.10-P-1001-02A	Bolts, steering wheel to steering shaft	Nm	80
