Remove/install airbag unit on steering wheel - AR91.60-P-0660GW
MODEL 463 as of model year 2013
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212°F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Fully extend steering wheel | ||
| 2 | Detach ground line from battery | AR54.10-P-0003GW | |

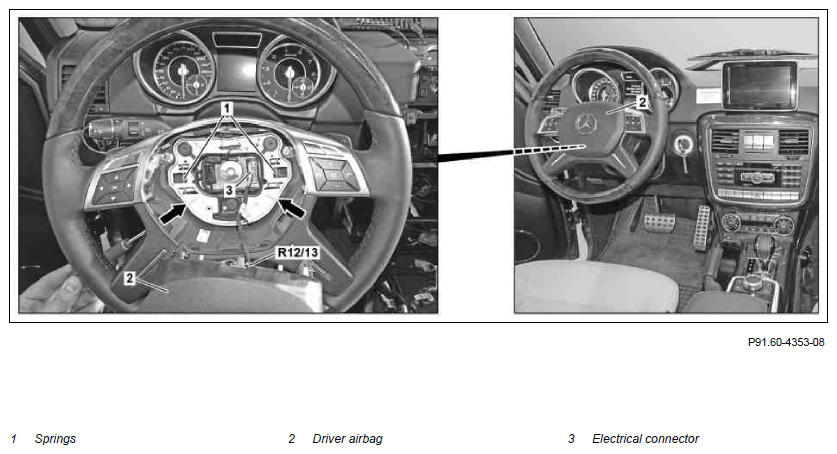

| 3 | Use suitable tool to push springs (1) inwards | The springs (1) must latch audibly into place in the driver airbag (2). Otherwise, the airbag may work loose from the steering wheel. |
|
| 4 | Lift driver airbag (2) off steering wheel | ||
| 5 | Release and disconnect electrical connection (3) | ||
| 6 | Remove driver airbag (2) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check and erase vehicle fault memory using the diagnostic system | When replacing the driver airbag (2). | |
| AD00.00-P-2000-04A |
