Remove/install retaining lock for crankshaft/ring gear - AR03.30-P-5000GW

ENGINES 157 in MODEL 463

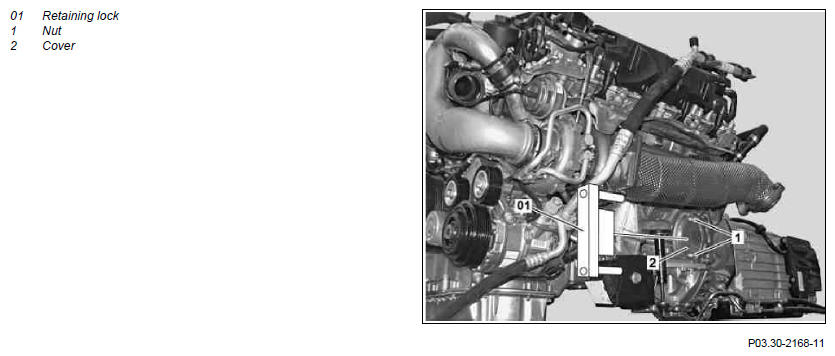

Fig 1: Retaining Lock For Crankshaft/Ring Gear Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Installing, removing
	Risk of injury  to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
1	Lift/jack up vehicle		AR00.60-P-1000G
2	Remove underride guard	Aid of helper required.
3	Unscrew nuts (1) and remove screw/bolts from transmission bell		*BA27.40-P-1001-01E
4	Remove cover (2) from crankcase
	Checking
5	Check splines of ring gear for drive plate	Check splines for wear and damage by rotating engine at the center bolt for crankshaft in its direction of rotation. Replace clutch plate if necessary: ↓
		Remove/install clutch plate	AR03.30-P-8001GW
			Figure
	Risk of injury  caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities	No parts of the body or limbs should be within operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
6	Insert retaining lock (01) into access opening	If required, rotate engine further at center bolt for crankshaft in engine's direction of rotation until the retaining lock (01) snaps into place.
			Fig 3
7	Remove in the reverse order

HOUSING

Number	Designation		Transmission 722.9 in model 463
BA27.40-P-1001-01E	Screw/bolt, automatic transmission to crankcase	Nm	39
