Remove/install flywheel/drive plate - AR03.30-P-8001GW

ENGINES 157 in MODEL 463

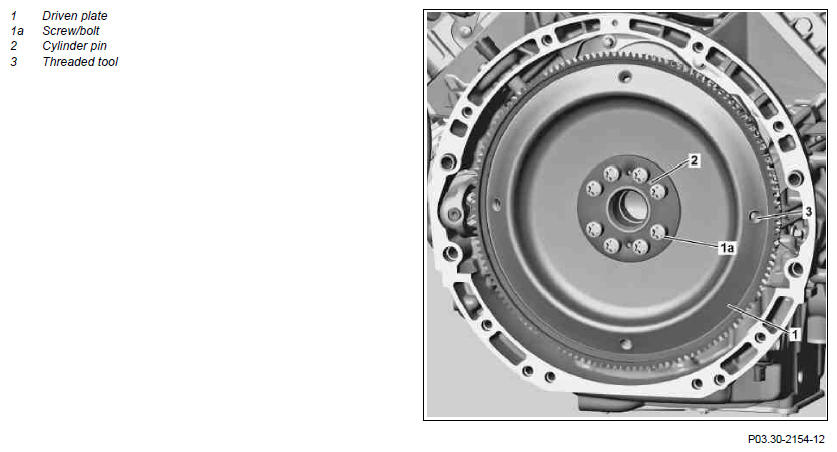

Fig 1: Flywheel/Drive Plate Remove/Install Components

G10779906

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove transmission with torque converter		AR27.10-P-0500GW
2	Install retaining lock for crankshaft/starter ring gear		AR03.30-P-5000GW
3	Remove screw/bolts (1a) from drive plate (1)	Do not use any impact wrench/driver or compressed air tool to screw the screw/bolts (1) in and out. The thread in the crankshaft can get damaged otherwise.	AR03.30-P-8001-02MM
		Replace screw/bolts (1a).
			*BA03.30-P-1002-01M
4	Remove drive plate (1) from crankshaft flange	The cylinder pin (2) determines the installation location of drive plate (1).
	Checking
5	Check threaded union (3) in the drive plate (1)	In case of damaged or loose threaded unions (3), drive plate (1) must be replaced.
6	Install in the reverse order
7	Carry out first initialization and then sensor rotor adaptation using STAR DIAGNOSIS	When replacing the clutch plate (1). Menu guidance: Engine control module Adaptations Learning processes	AD00.00-P-2000-04A

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 157
BA03.30-P-1002-01M	Screw/bolt, starter ring gear/drive plate to crankshaft	Stage 1	Nm	20
		Stage 2	Nm	45
		Stage 3	∠°	90
