Remove/install passenger compartment floor covering - AR68.20-P-2045GW

MODEL 463 as of model year 2013/model refinement package 2012

Shown on left-hand side

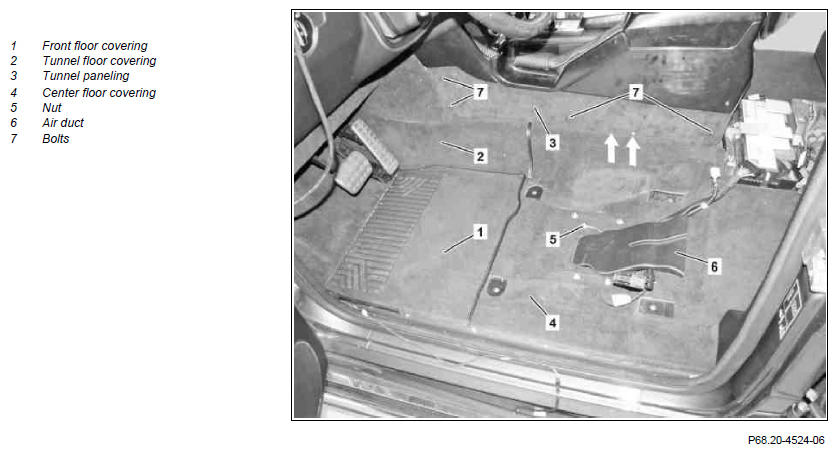

Fig 1: Passenger Compartment Floor Covering Remove/Install Components - Shown On Left-Hand Side

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat and console		AR91.10-P-3300GW
2	Remove air duct (6)	Air duct (6) is only clipped.
3	Unscrew nut (5) and remove ground line
4	Remove accelerator pedal		AR30.12-P-1321GW
5	Remove door sill moldings		AR68.30-P-4100GW
6	Remove front door covering (1)
7	Remove tunnel floor covering (2)
8	Unscrew bolts (7) and detach tunnel paneling (3)	When removing center floor covering (4)
9	Remove center floor covering (4)	When removing, the left side of the center floor covering (4) is fastened to the parking brake bearing bracket with two threaded pins.
10	Install in the reverse order
