Remove/install accelerator pedal - AR30.12-P-1321GW
MODEL 463 as of model year 2013/Facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove cover below left of instrument panel | AR68.10-P-1500GW | |

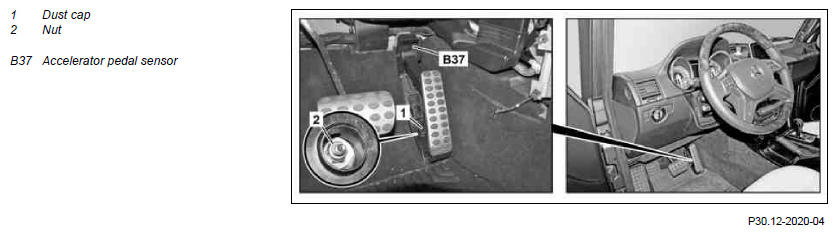

| 3 | Remove dust cap (1) | ||
| 4 | Unscrew nut (2) | ||
| 5 | Unhook accelerator pedal sensor (B37) | ||
| 6 | Disconnect electrical connector from accelerator pedal sensor (B37) | ||
| 7 | Install in the reverse order |
