Remove/install pyrofuse - AR54.10-P-1180EH
MODEL 212.095/098/195/298
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Detach ground line from on-board electrical system battery | AR54.10-P-0003EW | |

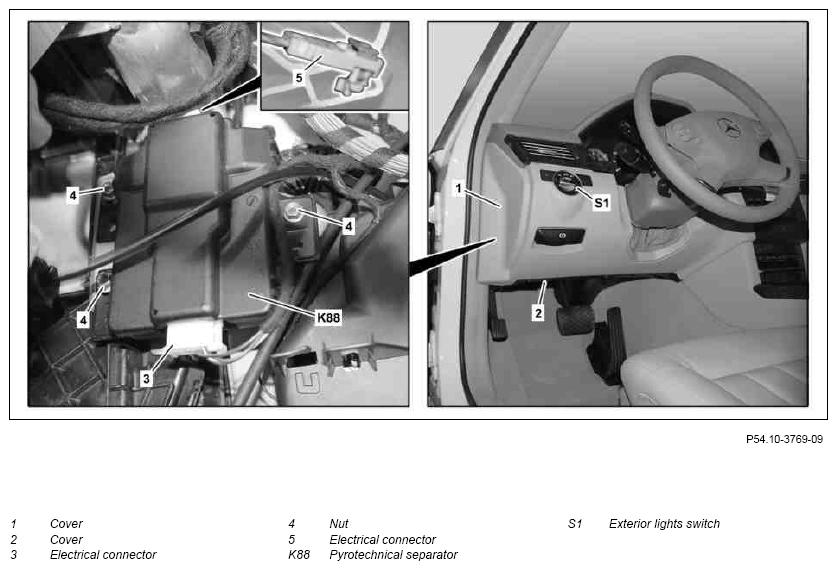

| 2 | Remove cover (1) | Fig 2 | |
| 3 | Remove cover (2) below dashboard | Rechargeable screwdriver, rechargeable drill | |
| 4 | Remove exterior lights switch (S1) | AR54.25-P-3270EW | |
| 5 | Disconnect electrical connector (3) | ||
| 6 | Unscrew nuts (4) | ||
| 7 | Remove pyrotechnical separator element (K88) from stud of nuts (4) | ||
| 8 | Release and disconnect electrical connector (5) | ||
| 9 | Remove pyrotechnical separating element (K88) | ||
| 10 | Install in the reverse order |
