Remove/install tuner unit - AR82.60-P-2002ELA
MODEL 218.3 as of model year 2015 with CODE 536 (SIRIUS satellite radio)
MODEL 218.3 as of model year 2015 with CODE 537 (Digital radio (DAB))
MODEL 218.3 as of model year 2015 with CODE 865 (TV tuner)
Shown with CODE 501 (360° camera) and CODE 872 (Rear seat heater)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of the tuner unit (A90/4) When replacing tuner unit (A90/4). | ||
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 218.3 as of model year 2015 with CODE 536 (SIRIUS satellite radio) without CODE 889 (KEYLESS-GO) MODEL 218.3 as of model year 2015 with CODE 537 (Digital radio (DAB)) without CODE 889 (KEYLESS-GO) MODEL 218.3 as of model year 2015 with CODE 865 (TV tuner) without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 218.3 as of model year 2015 with CODE 536 (SIRIUS satellite radio) with CODE 889 (KEYLESS-GO) MODEL 218.3 as of model year 2015 with CODE 537 (Digital radio (DAB)) with CODE 889 (KEYLESS-GO) MODEL 218.3 as of model year 2015 with CODE 865 (TV tuner) with CODE 889 (KEYLESS-GO) |
|

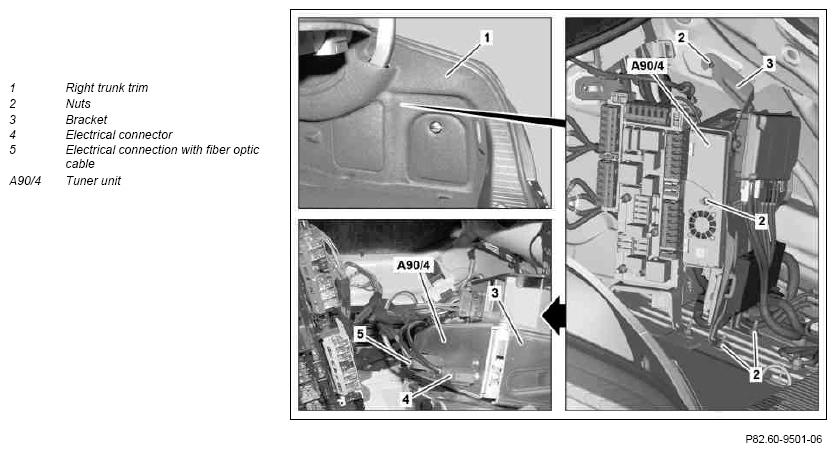

| 3 | Remove right luggage compartment lining (1) | AR68.30-P-4600EL | |
| 4 | Unscrew nuts (2) | ||
| 5 | Remove bracket (3) with tuner unit (A90/4) and place to one side with electrical lines connected | ||
| 6 | Disconnect electrical connection (4) | ||
| 7 | Disconnect electrical connection with optical fiber (5) | ||
| 8 | Cover up connector of electrical connection with optical fiber (5) and equipment connection on tuner unit (A90/4) | ||
| 9 | Remove tuner unit (A90/4) from bracket (3) | ||
| 10 | Install in the reverse order |
