Remove/install satellite radio control unit - AR82.60-P-7545EL
MODEL 218 up to model year 2015 with CODE 536 (SIRIUS satellite radio)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of SDAR/high definition tuner control unit (N87/8) | When replacing SDAR/high definition tuner control unit (N87/8). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 218 up to model year 2015 with CODE 536 (SIRIUS satellite radio) without CODE 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 218 up to model year 2015 with CODE 536 (SIRIUS satellite radio) with CODE 889 (KEYLESS-GO) |
|
| 3.1 | Remove left luggage compartment lining | MODEL 218.3 up to model year 2015 with CODE 536 (SIRIUS satellite radio) |
|
| AR68.30-P-4600EL | |||
| 3.2 | Remove luggage compartment trim on left | MODEL 218.9 up to model year 2015 with CODE 536 (SIRIUS satellite radio) |
|
| AR68.30-P-1180ELX | |||

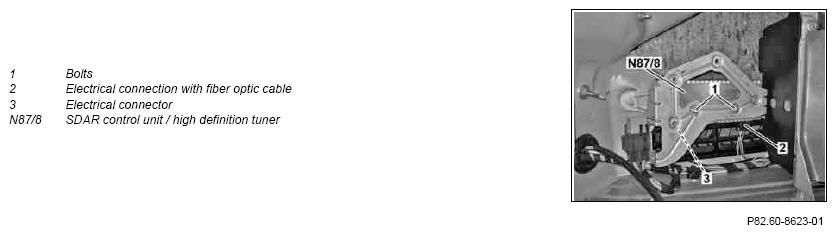

| 4 | Remove bolts (1) | ||
| 5 | Disconnect electrical connection with optical fiber (2) | ||
| 6 | Cover up connector of electrical connection with optical fiber (2) and equipment connection on SDAR/high definition tuner control unit (N87/8) | ||
| 7 | Pull out SDAR/high definition tuner control unit (N87/8) far enough upwards until the electrical connection (3) is accessible | ||
| 8 | Disconnect electrical connector (3) | ||
| 9 | Remove SDAR/high definition tuner control unit (N87/8) | ||
| 10 | Install in the reverse order |
