Retrofit Drive Kit Plus for Apple iPhone - AZ82.60-P-0019EL

Model 218.3 (except 218.374/375/376/392) up to 9/27/14, 218.9 (except 218.974/975/976/992) up to 9/27/14 up to model year 2015 except code 218 (Rear view camera) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio) except code 865 (TV tuner) except code 867 (SPLITVIEW)

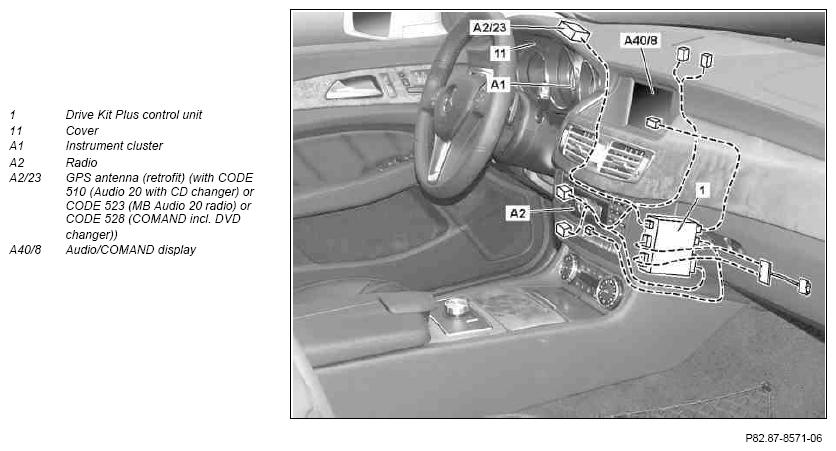

Routing diagram for Drive Kit Plus for Apple iPhone 4 up to 28.02.13 up to model year 2014, shown on a left-hand drive vehicle with CODE 510 (Audio 20 with CD changer)

Fig 1: Apple iPhone 4 Drive Kit Plus Routing Diagram - Code 510

Courtesy of MERCEDES-BENZ USA

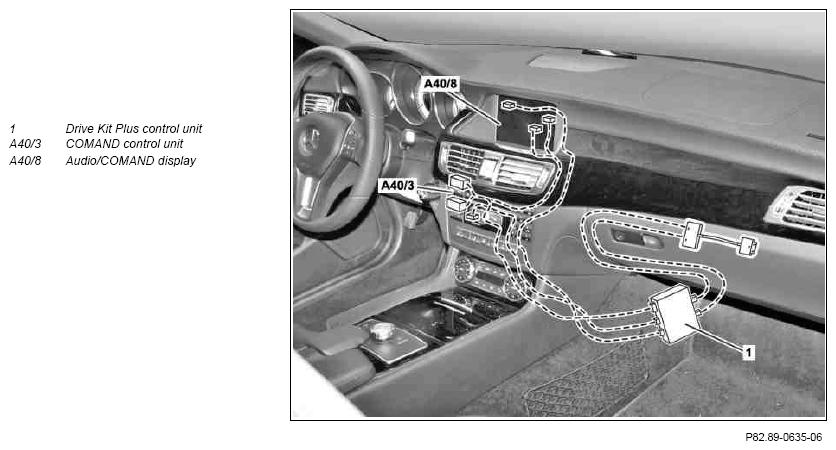

Routing diagram for Drive Kit Plus for Apple iPhone 4 as of 01.03.13 as of model year 2014, shown on a left-hand drive vehicle with CODE 512 (COMAND APS with DVD changer)

Fig 2: Apple iPhone 4 Drive Kit Plus Routing Diagram - Code 512

Courtesy of MERCEDES-BENZ USA

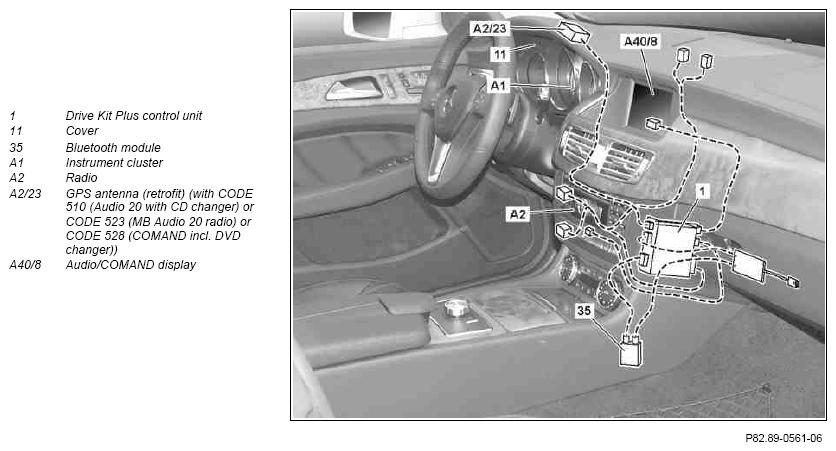

Routing diagram for Drive Kit Plus for Apple iPhone 5 up to 28.02.13 up to model year 2014, shown on a left-hand drive vehicle with CODE 510 (Audio 20 with CD changer)

Fig 3: Apple iPhone 5 Drive Kit Plus Routing Diagram - Code 510

Courtesy of MERCEDES-BENZ USA

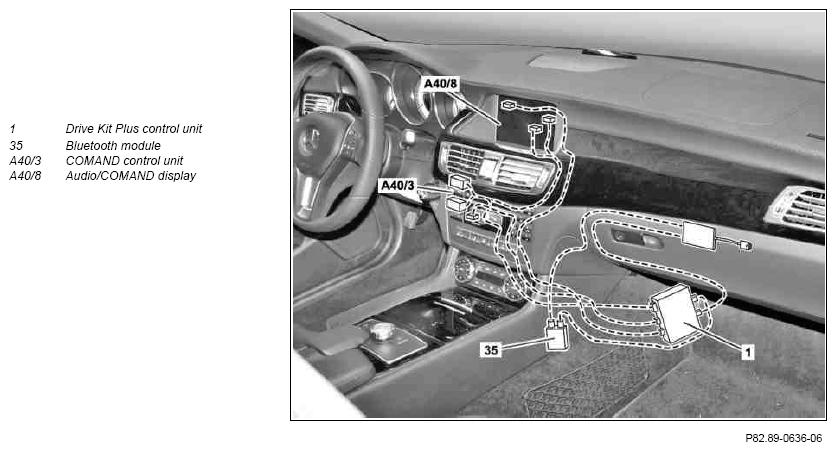

Routing diagram for Drive Kit Plus for Apple iPhone 5 as of 01.03.13 as of model year 2014, shown on a left-hand drive vehicle with CODE 512 (COMAND APS with DVD changer)

Fig 4: Apple iPhone 5 Drive Kit Plus Routing Diagram - Code 512

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove
1	Move front passenger seat toward rear
2	Remove glove compartment
			AR68.10-P-1400EL
3	Remove audio component
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation)) Removal of the COMAND controller unit (A40/3) with CODE 528 (COMAND incl. DVD changer) takes place in the same way.	AR82.60-P-7502EW
4	Remove Audio/COMAND display (A408)
		MODEL 218.3 with CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation)) Removal is performed in the same manner for MODEL 218.9 or CODE 528 (COMAND incl. DVD changer).	AR82.60-P-7722EL
5	Remove cover (11) from instrument cluster (A1)
		With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio) or CODE 528 (COMAND incl. DVD changer)	AR54.30-P-6015EL
6	Remove front center console
		With CODE 518 (Media Interface)	AR68.20-P-2000EL
7	Remove center console mounting plate
		With CODE 518 (Media Interface)	AR68.20-P-2150ELA
	Install
8	Prepare vehicle for retrofit of Drive Kit Plus for Apple iPhone	MODEL 218.3/9 as of 01.03.13 as of model year 2014	AZ82.60-P-0019-08EL
9	Retrofit Drive Kit Plus adapter wiring harness		AZ82.60-P-0019-01EL
		Long wedge	Figure
10	Retrofit Drive Kit Plus low voltage differential signaling (LVDS) wiring harness	MODEL 218.3/9 up to 31.05.12 up to model year 2013 with CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio) or CODE 512 (COMAND APS with DVD changer) and without CODE 088 (NTG 4.5 control code) or CODE 527 (COMAND APS with single DVD drive (with navigation)) and without CODE 088 (NTG 4.5 control code) or CODE 528 (COMAND incl. DVD changer) and without CODE 088 (NTG 4.5 control code)	AZ82.60-P-0019-04ELA
		MODEL 218.3/9 as of 01.06.12 as of model year 2013 with CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 528 (COMAND with DVD changer)	AZ82.60-P-0019-04EL
11	Retrofit GPS antenna (retrofit) (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio) or CODE 528 (COMAND incl. DVD changer)	AZ82.61-P-0003-02ELA
12	Retrofit Drive Kit Plus connecting wiring harness		AZ82.60-P-0019-02EL
		Clarify with the customer whether the iPhone cradle is to be installed.
13	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)	AZ82.60-P-0019-05EL
14	Retrofit Drive Kit Plus control unit (1)	MODEL 218.3/9 up to 28.02.13 up to model year 2014	AZ82.60-P-0019-03EL
		MODEL 218.3/9 as of 01.03.13 as of model year 2014	AZ82.60-P-0019-03ELA
15	Retrofit Bluetooth module (35)	With retrofitting of the Drive Kit Plus for the Apple iPhone 5.
			AZ82.60-P-0019-07EL
16	Install remaining parts
	Update Vehicle Documentation (VeDoc)
17	Attach note "Drive Kit Plus for the Apple iPhone retrofitted as pe AZ82.60-P-0019EL " under field organization texts to DG 68 and DG 82
18	Enter special equipment via VeDoc into the online vehicle data card - CODE "89o"	Ensure here that the third digit is the letter "o" for Oscar.
19	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
20	Perform variant coding with XENTRY using the software calibration number (SCN)	Register Drive Kit Plus for the Apple iPhone with the audio component using SCN coding.
21	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
	Check
22	Perform function check of Drive Kit Plus for Apple iPhone	See Owner's Manual.

Fig 5: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
