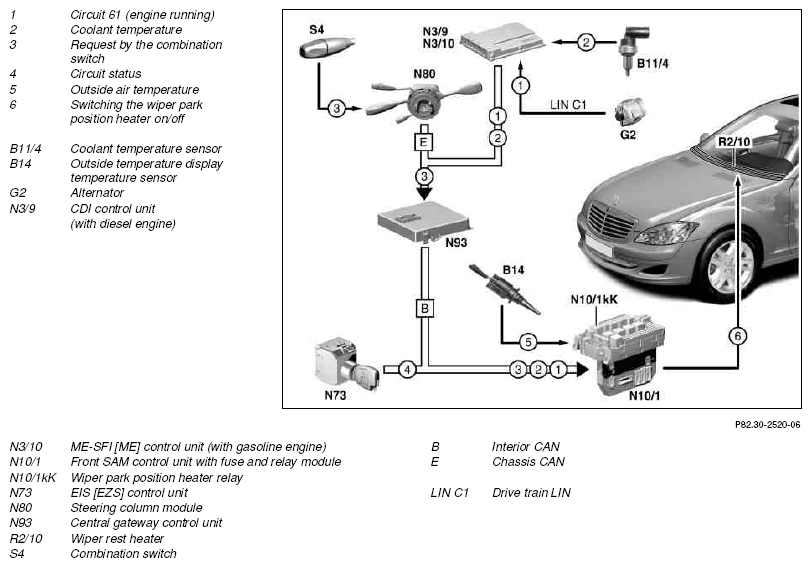

Heating wiper support, function - GF82.30-P-2003SX
MODEL 221.0/1, 216.3 up to Model Year 8
Switching on
The wiper park position heater is switched on automatically if the conditions below are met:
- Circuit 61 ON (engine running)
- Outside air temperature less than 5 °C
Off
The wiper park position heater is switched off automatically if one of the conditions below is met:
- C. 61 OFF
- Outside air temperature greater than 5 °C
- Wiper system is not operated within 25 min. at an engine temperature of less than 70 °C
- Wiper system is not operated within 15 min. at an engine temperature of more than 70 °C
- Wiper system is not operated within 10 min. when the vehicle is at a standstill
| Outside air temperature sensor component description | B14 | GF83.57-P-4000SX | |
| CDI control unit component description | N3/9 Model 221 with engine 642 |
GF07.16-P-6000SX | |
| ME-SFI [ME] control unit, component description | N3/10 Model 221 with engine 272.965 and 273.961 |
GF07.61-P-6000V | |
| ME-SFI control unit, location/task/design/function | N3/10 Model 221 with engine 275.953/982 |
GF07.61-P-5000M | |
| Driver-side SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6010SX | |
| Electronic ignition/starter switch control unit (EIS) component description | N73 | GF80.57-P-6000SX | |
| Steering column module component description | N80 | GF54.21-P-6050SX | |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX | |
| Combination switch, component description | S4 | GF82.30-P-5000SX |
