Outside air temperature sensor component description - GF83.57-P-4000SX

MODEL 221.0/1, 216.3 up to Model Year 08

Illustrated on model 221

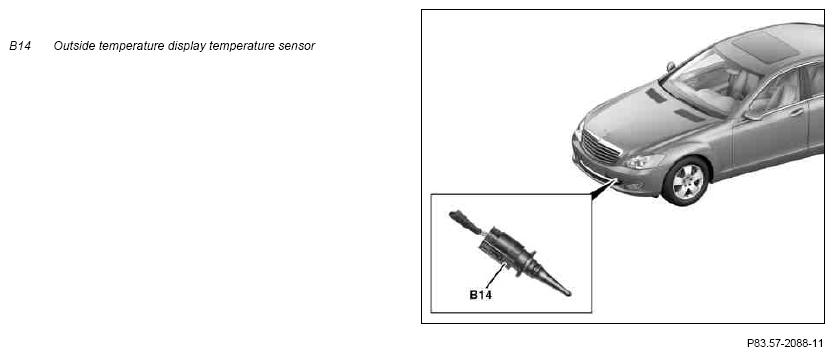

Fig 1: Outside Air Temperature Sensor - Illustrated On Model 221

Courtesy of MERCEDES-BENZ USA

Location

The temperature sensor is located in the left front in the bumper.

Task

Recording the outside air temperature.

Function

The temperature sensor changes its resistance depending on the outside air temperature. It is discretely read in by the front SAM control unit with fuse and relay module (N10/1).
