Adjust camber and caster at the front axle - AR40.20-P-0263CW

MODEL 172, 204, 207

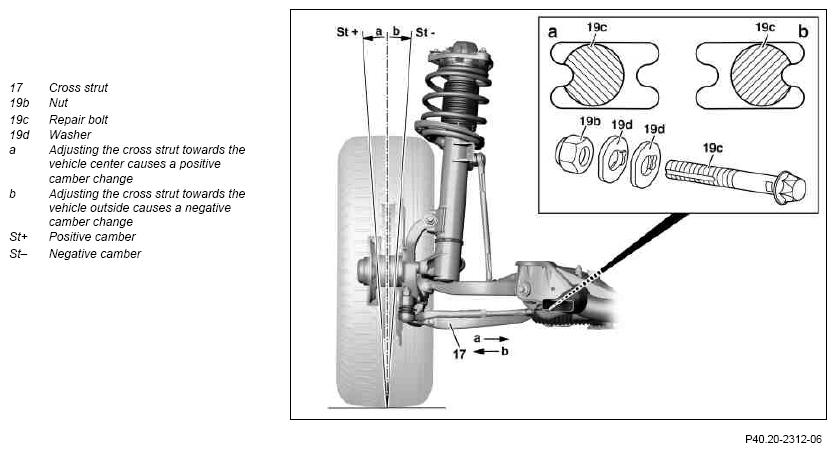

Camber, shown on model 204.0 without 4MATIC

Fig 1: Adjusting Front Axle Camber - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

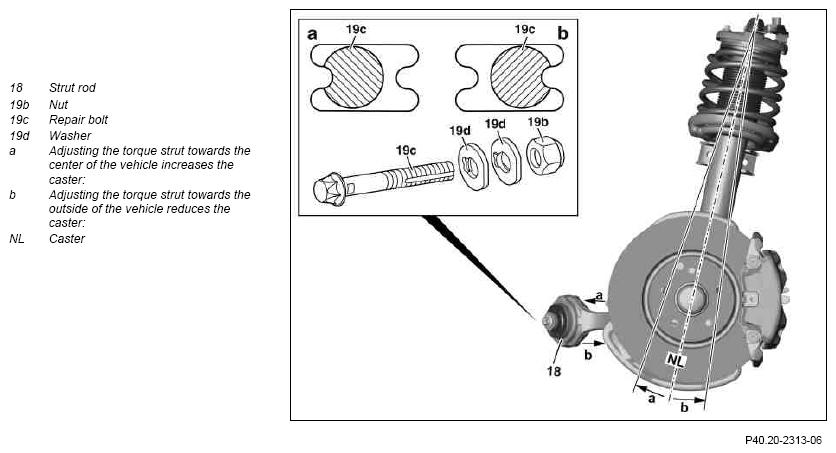

Caster, shown on model 204.0 without 4MATIC

Fig 2: Adjusting Front Axle Caster - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

	Remove
1.1	Remove both lower engine compartment paneling	MODEL 204.9
1.1	Remove both lower engine compartment paneling	MODEL 204.9	AR61.20-P-1105CY
1.2	Remove engine compartment paneling	MODEL 172, 204.0/2/3, 207 with gasoline engine
		MODEL 204.0/2/3., 207 with gasoline engine	AR61.20-P-1105EW
		MODEL 172 with gasoline engine	AR61.20-P-1105W
1.3	Remove bottom sections of soundproofing	MODEL 172, 204.0/2/3, 207 with diesel engine
		MODEL 204.0/2/3., 207 with diesel engine	AR94.30-P-5300EW
		MODEL 172 with diesel engine	AR94.30-P-5300W
2	Raise the vehicle at the front axle
	Adjust
3.1	Adjust camber	MODEL 172
		Camber at vehicle level	*BE40.20-P-1001-13AA
		Permissible difference in front axle camber between right and left sides of the vehicle	*BE40.20-P-1002-13AA
3.2	Adjust camber	MODEL 204 Only a specified level of the vehicle incl. tolerances are shown in the displayed basic data. No level-dependent values are specified. Dependent on the measured level, if the vehicle is in the tolerance range, this measurement is OK.
		Camber at vehicle level	*BE40.20-P-1001-13O
		Permissible difference in front axle camber between right and left side of vehicle	*BE40.20-P-1002-13O
3.3	Adjust camber	MODEL 207 Only three specified levels of the vehicle incl. tolerances are shown in the displayed basic data. Dependent on the measured level, if the vehicle is in the tolerance range, this measurement is OK.
		Camber at vehicle level	*BE40.20-P-1001-13Q
		Permissible difference in front axle camber between right and left side of vehicle	*BE40.20-P-1002-13Q
4.1	Adjusting caster	MODEL 172
			AR40.20-P-0322-03W
		Permissible difference in caster between right and left sides of the vehicle	*BE40.20-P-1001-20A
		Caster	*BE40.20-P-1002-20A
4.2	Adjusting caster	MODEL 204
		MODEL 204.9	AR40.20-P-0322-03CZ
		MODEL 204 (except 204.9)	AR40.20-P-0322-03CW
		Caster values, form	*BE40.20-P-1001-20E
		Permissible difference in caster between right and left side of vehicle	*BE40.20-P-1002-20E
		Absolute caster tolerance	*BE40.20-P-1003-20E
4.3	Adjusting caster	MODEL 207
			AR40.20-P-0322-03EC
		Caster values, form	*BE40.20-P-1001-20E
		Permissible difference in caster between right and left side of vehicle	*BE40.20-P-1002-20E
		Absolute caster tolerance	*BE40.20-P-1003-20E
5	Recheck vehicle level at front axle after adjusting the camber and caster	MODEL 204	AR40.20-P-0301CY
5		MODEL 172, 207 The vehicle level must correspond to the quoted specified values.	AR40.20-P-0301CW
6	Tighten the nut (19b) of the repair bolt (19c)	The repair bolt (19c) must not turn after fixing. Counterhold the repair bolt (19c) when tightening the nut (19b). Otherwise the lock tabs in the front axle carrier may be damaged.
		MODEL 172	*BA33.20-P-1002-01Q
		MODEL 204, 207	*BA33.20-P-1002-01N
		MODEL 172	*BA33.20-P-1003-01Q
		MODEL 204, 207	*BA33.20-P-1010-01N
		MODEL 204, 207	*BA33.20-P-1004-01N
		MODEL 172	*BA33.20-P-1006-01Q
		MODEL 204, 207	*BA33.20-P-1005-01N
	Install
7.1	Install both lower engine compartment paneling	MODEL 204.9
7.1	Install both lower engine compartment paneling	MODEL 204.9	AR61.20-P-1105CY
7.2	Install lower engine compartment paneling	MODEL 172, 204.0/2/3, 207 with gasoline engine
		MODEL 204.0/2/3., 207 with gasoline engine	AR61.20-P-1105EW
		MODEL 172 with gasoline engine	AR61.20-P-1105W
7.3	Install bottom section of soundproofing	MODEL 172, 204.0/2/3, 207 with diesel engine
		MODEL 204.0/2/3., 207 with diesel engine	AR94.30-P-5300EW
		MODEL 172 with diesel engine	AR94.30-P-5300W

INSPECTION AND ADJUSTING VALUES FOR FRONT-AXLE CAMBER

Number	Designation			Model 172 except AMG	Model 172 AMG
BE40.20-P-1001-13AA	Camber at vehicle level	-0.3°	∠°	-1°30' (±24')	-1°32' (±24')
		+0.3°	∠°	-1°30' (±24')	-1°31' (±24')
		+0.7°	∠°	-1°29' (±24')	-1°30' (±24')
		+1.2°	∠°	-1°29' (±24')	-1°29' (±24')
		+1.7°	∠°	-1°28' (±24')	-1°29' (±24')
		+2.3°	∠°	-1°27' (±24')	-1°28' (±24')
		+2.8°	∠°	-1°26' (±24')	-1°26' (±24')
		+3.8°	∠°	-1°24' (±24')	-1°24' (±24')
		+4.3°	∠°	-1°23' (±24')	-1°23' (±24')
		+4.8°	∠°	-1°21' (±24')	-1°20' (±24')
		+5.3°	∠°	-1°20' (±24')	-1°19' (±24')

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.0/2 up to model refinement package, with cross strut (old version), with code 482	Model 204.0/2 up to model refinement package, with cross strut (new version), with code 482
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-0° 6' (+15'/-27')
		+10.06°	∠°	-	-
		+9.06°	∠°	-0° 6' (+19'/-27')	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.0/2 up to model refinement package, with cross strut (old version), with code 483/486, except 4MATIC	Model 204.0/2 up to model refinement package, with cross strut (new version), with code 483/486, except 4MATIC
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-0° 30' (+15'/-27')
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-0° 30' (+21'/-27')	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.0/2 up to model refinement package, with cross strut (old version), with code 485/677, except 4MATIC	Model 204.0/2 up to model refinement package, with cross strut (new version), with code 485/677, except 4MATIC
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-0° 20' (+15'/-27')
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-0° 20' (+20'/-27')	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.0/2 as of model refinement package, with code 482	Model 204.0/2 as of model refinement package, with code 483/486, except 4MATIC
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-0° 6' (+15'/-27')	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-0° 30' (+15'/-27')
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.0/2 as of model refinement package, with code 485, except 4MATIC	Model 204.0/2 as of model refinement package, with code 677, except 4MATIC
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-0° 20' (+15'/-27')	-0° 20' (+15'/-27')
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.3 with code 483/486, except code P84, except 4MATIC	Model 204.3 with code 677, except 4MATIC
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-0° 20' (+15'/-27')
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-0° 30' (+15'/-27')	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.3 with code P84	Model 204.0/2/3 with 4MATIC, with code 486
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-1° 31' (±21')	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-0° 35' (+15'/-27')

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.0/2/3 with 4MATIC, with code 677	Model 204.9 with code 485, except code 460/494/830
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-0° 16' (±21')
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-0° 29' (±21')	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.9 as of model refinement package, with code 491, except code 460/494/830	Model 204.9 with code 482
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-0° 3' (±21')
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-0° 33' (±21')	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.9 with code 486	Model 204.9 with code 460/494/830
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-0° 14' (±21')
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-0° 34' (±21')	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.0/2 AMG up to model refinement package	Model 204.0/2 AMG as of model refinement package, model 204.3 AMG except code P98
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-1° 45' (±21')
		+6.68°	∠°	-	-
		+6.45°	∠°	-1° 23' (±21')	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 204.3 AMG with code P98 except code 224	Model 204.3 AMG with code P98+code 224
BE40.20-P-1001-13O	Camber at vehicle level	+10.64°	∠°	-	-
		+10.06°	∠°	-	-
		+9.06°	∠°	-	-
		+8.47°	∠°	-	-
		+8.26°	∠°	-	-
		+8.16°	∠°	-	-
		+6.76°	∠°	-	-
		+6.68°	∠°	-	-
		+6.45°	∠°	-	-
		+5.88°	∠°	-	-
		+5.29°	∠°	-	-
		+5.07°	∠°	-1° 57' (±18')	-
		+4.98°	∠°	-	-
		+4.92°	∠°	-	-1° 58' (±18')
		+4.30°	∠°	-	-
		+2.24°	∠°	-	-
		-0.34°	∠°	-	-

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation			Model 207 with code 483/485/486 except 4Matic	Model 207 with 4Matic
BE40.20-P-1001-13Q	Camber at vehicle level	-2.06°	∠°	-	-0° 38' (+15'/-27')
		-0.34°	∠°	-	-0° 35' (+15'/-27')
		+1.38°	∠°	-	-0° 31' (+15'/-27')
		+4.13°	∠°	-0° 35' (+3'/-39')	-
		+5.72°	∠°	-0° 31' (+3'/-39')	-
		+7.31°	∠°	-0° 25' (+3'/-39')	-

CHECK AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		MODEL 172
BE40.20-P-1001-20A	Permissible difference in caster between right and left sides of the vehicle	∠°	30'

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation	MODEL 204 (except 204.9)	MODEL 204.9
BE40.20-P-1001-20E	Caster values, form
BE40.20-P-1001-20E	See	OF40.20-P-3000-00CW	OF40.20-P-3000-00CZ

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation	MODEL 207
BE40.20-P-1001-20E	Caster values, form
BE40.20-P-1001-20E	See	OF40.20-P-3000-00EC

INSPECTION AND ADJUSTING VALUES FOR FRONT-AXLE CAMBER

Number	Designation		Model 172 except AMG	Model 172 AMG
BE40.20-P-1002-13AA	Permissible difference in front axle camber between right and left sides of the vehicle	∠°	24'	24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.0/2 up to model refinement package, with cross strut (old version), with code 482	Model 204.0/2 up to model refinement package, with cross strut (new version), with code 482
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.0/2 up to model refinement package, with cross strut (old version), with code 483/486, except 4MATIC	Model 204.0/2 up to model refinement package, with cross strut (new version), with code 483/486, except 4MATIC
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.0/2 up to model refinement package, with cross strut (old version), with code 485/677, except 4MATIC	Model 204.0/2 up to model refinement package, with cross strut (new version), with code 485/677, except 4MATIC
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.0/2 as of model refinement package, with code 482	Model 204.0/2 as of model refinement package, with code 483/486, except 4MATIC
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.0/2 as of model refinement package, with code 485, except 4MATIC	Model 204.0/2 as of model refinement package, with code 677, except 4MATIC
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.3 with code 483/486, except code P84, except 4MATIC	Model 204.3 with code 677, except 4MATIC
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.3 with code P84	Model 204.0/2/3 with 4MATIC, with code 486
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.0/2/3 with 4MATIC, with code 677	Model 204.9 with code 485, except code 460/494/830
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.9 as of model refinement package, with code 491, except code 460/494/830	Model 204.9 with code 482
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.9 with code 486	Model 204.9 with code 460/494/830
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.0/2 AMG up to model refinement package	Model 204.0/2 AMG as of model refinement package, model 204.3 AMG except code P98
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 204.3 AMG with code P98 except code 224	Model 204.3 AMG with code P98+code 224
BE40.20-P-1002-13O	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK VALUES FOR FRONT AXLE CAMBER

Number	Designation		Model 207 with code 483/485/486 except 4Matic	Model 207 with 4Matic
BE40.20-P-1002-13Q	Permissible difference in front axle camber between right and left side of vehicle	∠°	±24'	±24'

CHECK AND ADJUSTMENT VALUES FOR CASTER

Number	Designation	MODEL 172
BE40.20-P-1002-20A	Caster
BE40.20-P-1002-20A	See	AR40.20-P-0322-03W

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		MODEL 204 (except 204.9)	MODEL 204.9
BE40.20-P-1002-20E	Permissible difference in caster between right and left side of vehicle	∠°	±30'	±30'

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		MODEL 207
BE40.20-P-1002-20E	Permissible difference in caster between right and left side of vehicle	∠°	±30'

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		MODEL 204 (except 204.9)	MODEL 204.9
BE40.20-P-1003-20E	Absolute caster tolerance	∠°	±30'	±30'

TEST AND ADJUSTMENT VALUES FOR CASTER

Number	Designation		MODEL 207
BE40.20-P-1003-20E	Absolute caster tolerance	∠°	±30'

WHEEL CONTROL, HUB

Number	Designation				MODEL 204 except 4MATIC	MODEL 204 with 4MATIC
BA33.20-P-1002-01N	Self-locking nut, torque strut to front axle carrier	M14X115X10.9	Stage 1	Nm	80	-
		M14X115X10.9	Stage 2	∠°	120	-
		M14X120X10.9	Stage 1	Nm	120	120
		M14X120X10.9	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 207 except 4MATIC
BA33.20-P-1002-01N	Self-locking nut, torque strut to front axle carrier	M14X115X10.9	Stage 1	Nm	80
		M14X115X10.9	Stage 2	∠°	120
		M14X120X10.9	Stage 1	Nm	120
		M14X120X10.9	Stage 2	∠°	180

WHEEL CONTROL, HUB

Number	Designation			MODEL 172
BA33.20-P-1002-01Q	Self-locking nut, torque strut to front axle carrier	Stage 1	Nm	120
BA33.20-P-1002-01Q	Self-locking nut, torque strut to front axle carrier	Stage 2	∠°	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 172
BA33.20-P-1003-01Q	Self-locking nut (repair kit), strut rod to front axle carrier	Stage 1	M14X120X11.9	Nm	100
BA33.20-P-1003-01Q		Stage 2		∠°	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 204 except 4MATIC	MODEL 204 with 4MATIC
BA33.20-P-1004-01N	Self-locking nut, cross strut to front axle carrier	M14X115X10.9	Stage 1	Nm	80	-
		M14X115X10.9	Stage 2	∠°	120	-
		M14X120X10.9	Stage 1	Nm	120	120
		M14X120X10.9	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 207 except 4MATIC	MODEL 207 with 4MATIC
BA33.20-P-1004-01N	Self-locking nut, cross strut to front axle carrier	M14X115X10.9	Stage 1	Nm	80	-
		M14X115X10.9	Stage 2	∠°	120	-
		M14X120X10.9	Stage 1	Nm	120	120
		M14X120X10.9	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 204 except 4MATIC	MODEL 204 with 4MATIC
BA33.20-P-1005-01N	Self-locking nut (repair kit), cross strut to front axle carrier	M14X115X10.9	Stage 1	Nm	80	-
		M14X115X10.9	Stage 2	∠°	120	-
		M14X120X11.9	Stage 1	Nm	100	100
		M14X120X11.9	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 207 except 4MATIC	MODEL 207 with 4MATIC
BA33.20-P-1005-01N	Self-locking nut (repair kit), cross strut to front axle carrier	M14X115X10.9	Stage 1	Nm	80	-
		M14X115X10.9	Stage 2	∠°	120	-
		M14X120X11.9	Stage 1	Nm	100	100
		M14X120X11.9	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 172
BA33.20-P-1006-01Q	Self-locking nut (repair kit), cross strut to front axle carrier	Stage 1	M14X120X11.9	Nm	100
BA33.20-P-1006-01Q		Stage 2		∠°	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 204 except 4MATIC	MODEL 204 with 4MATIC
BA33.20-P-1010-01N	Self-locking nut (repair kit), strut rod to front axle carrier	M14X115X10.9	Stage 1	Nm	80	-
		M14X115X10.9	Stage 2	∠°	120	-
		M14X120X11.9	Stage 1	Nm	100	100
		M14X120X11.9	Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation				MODEL 207 except 4MATIC	MODEL 207 with 4MATIC
BA33.20-P-1010-01N	Self-locking nut (repair kit), strut rod to front axle carrier	M14X115X10.9	Stage 1	Nm	80	-
		M14X115X10.9	Stage 2	∠°	120	-
		M14X120X11.9	Stage 1	Nm	100	100
		M14X120X11.9	Stage 2	∠°	180	180
