Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301CW

MODEL 172, 207

Fig 1: Identifying Inclinometer & Measuring Sensor

Courtesy of MERCEDES-BENZ USA

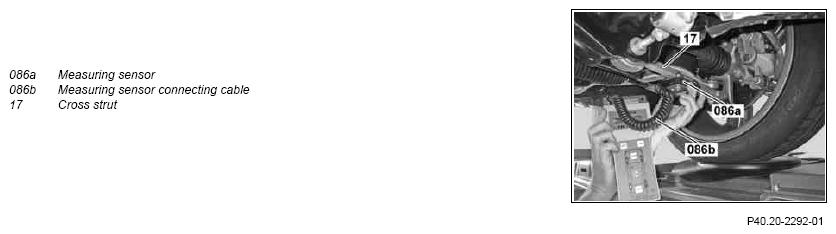

Shown on model 204.0 without 4Matic, measuring point 2 cross strut (17) at right front (old version)

Fig 2: Measuring Cross Strut (Old Version) - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

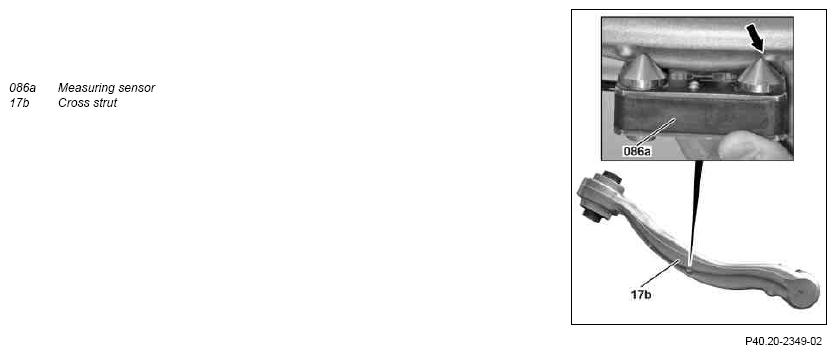

Shown on model 204.0 without 4Matic, measuring point 2 cross strut (17b) at right front (new version)

Fig 3: Measuring Cross Strut (New Version) - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

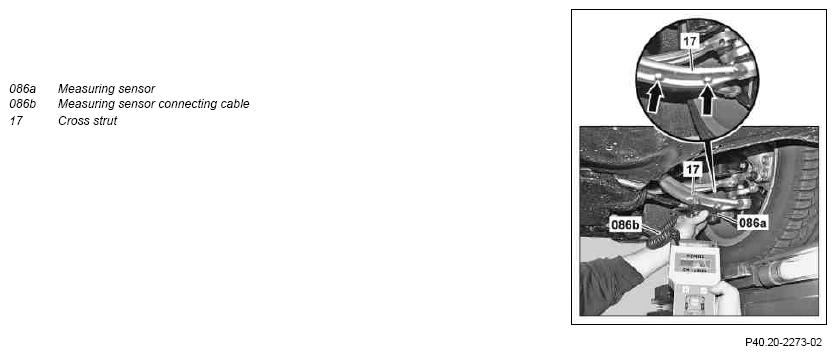

Shown on model 204.9 with 4Matic, measuring point 2 cross strut (17) at right front

Fig 4: Measuring Cross Strut - Shown On Model 204.9

Courtesy of MERCEDES-BENZ USA

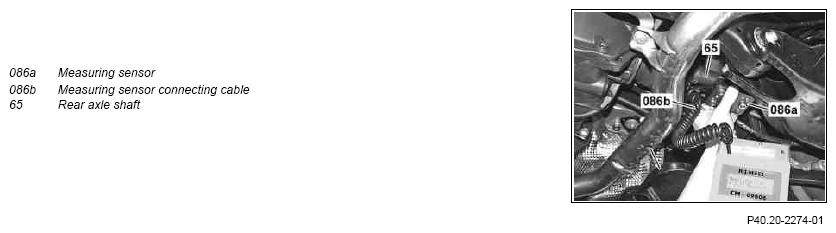

Shown on model 204.0 without 4Matic, measuring point 4 rear axle shaft (65) at right

Fig 5: Measuring Rear Axle Shaft - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

	Check
1	Carry out preconditions and tests for vehicle level measurement		AR40.00-P-0202A
2	Clean measuring points	This prevents any measuring errors.
3	Mount measuring sensor (086a) on cross strut (17) and read off vehicle level on inclinometer (086)	The measurement sensor connecting cable (086b) must face towards the vehicle center. Otherwise the measurement will be inaccurate. Measure vehicle level at • measuring point 1 (left front) and • measuring point 2 (right front) and store measured values. Model 207 with 4MATIC: Mount measuring sensor (086a) roughly in the center of the cross strut (17). Model 172, 207 except 4MATIC: In order to prevent the measuring sensor (086a) on the cross strut (17b) and therefore an erroneous measurement, the measuring sensor (086a) must be mounted between the cast-in humps (arrows) and pressed towards the wheel. The measuring sensor (086a) must contact the outboard humps (arrow).
		Model 172	*BE40.20-P-1002-02D
		Model 207 Electronic inclinometer	*BE40.20-P-1001-02CA
4	Mount the measuring sensor (086a) on rear axle shaft (65) and read off vehicle level on the inclinometer (086)	The measurement sensor connecting cable (086b) must face towards the vehicle center. Otherwise the measurement will be inaccurate. Measure vehicle level to • measuring point 3 (left rear) and • measuring point 4 (right rear) and measured values.
		MODEL 172	*BE40.20-P-1002-03T
		Model 207	*BE40.20-P-1001-03EA
5	Check the maximum permissible difference in vehicle level between the left and right side of the vehicle	The specified test tolerance applies only when checking the vehicle level but not for calibration. If the vehicle level at the front or rear axle is out of tolerance, the springs and spring- rubber bushing must be checked for signs of wear and damage.
		Model 207	*BE40.20-P-1002-03EA
		Model 207 Permissible difference in vehicle level at front axle between right and left sides of the vehicle: ↓	*BE40.20-P-1002-02CA
		Model 172 Permissible difference in vehicle level at rear axle between right and left sides of the vehicle: ↓	*BE40.20-P-1003-02D
		MODEL 172	*BE40.20-P-1003-03T
6	Check and correct the adjustment of the headlamps	Only if the vehicle level was adjusted.
		MODEL 172	AP82.10-P-8260V
		MODEL 207	AP82.10-P-8260EW
