Remove/install trim strip on rear door window frame - AR72.12-P-1710SXS

MODEL 221.1 with CODE (Z07) Top protection

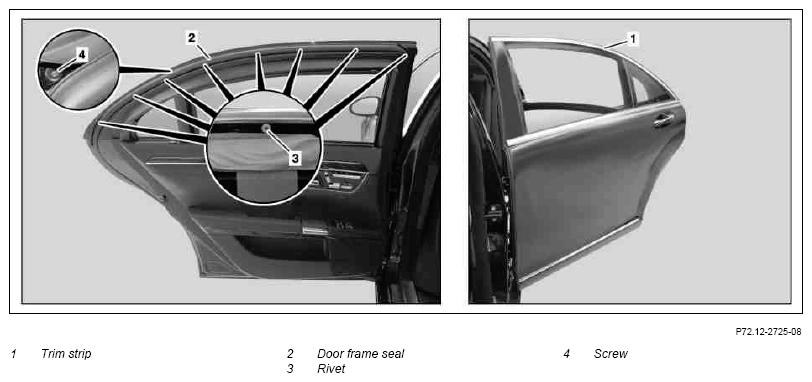

Fig 1: Identifying Rear Door Window Frame Trim Strip Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
1	Remove top seal on window frame on left or right rear door		AR72.12-P-1550SXS
2	Pull door frame seal (2) downward in area of rivets (3) and fasten with adhesive tape to window frame	Do not pull door frame seal (2) down with too much force, otherwise, it detaches from the window frame. This prevents damaging the door frame seal (2) when drilling out the rivets (3) later.
3	Mask off gap between door frame seal (2) and window frame over entire length with adhesive tape	This ensures that no chips or drilling residues fall into the gap.
4	Seal opening in window frame below front rivet (3)	This ensures that no chips or drilling residues fall into the window frame.
5	Drill out rivet heads (3) with drill bit (3.5 mm dia.)	Do not drill through rivets (3), otherwise, the window frame is damaged. Cordless drill/driver, cordless drill Pliers
6	Remove bolt (4) in area of window separator bar
7	Completely remove rivet residues.	Any rivet residues and chips remaining cause corrosion damages.
8	Loosen trim strip (1) and remove from window frame	Repair paint damage on window frame with suitable touch-up paint pen.
			Figure
9	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
