Remove/install sealing (top) from rear door window frame. - AR72.12-P-1550SXS

MODEL 221.1 with CODE (Z07) Top protection

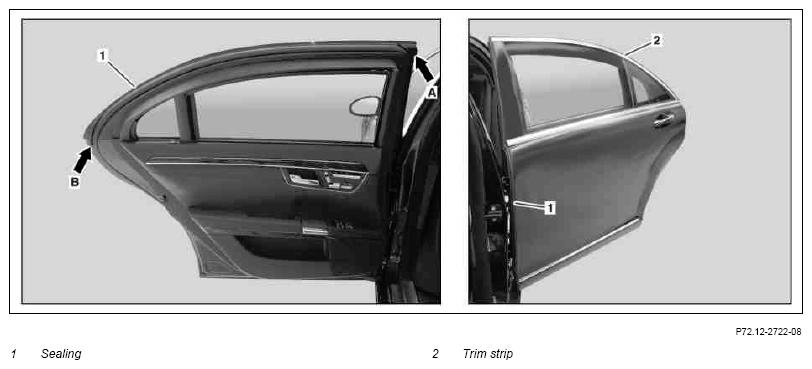

Fig 1: Identifying Rear Door Window Frame Sealing Remove/Install Components (Top)

Courtesy of MERCEDES-BENZ USA

	Removing
1	Open front door and rear door on left and right side of vehicle
2	Detach seal (1) from window frame at top (arrow A) and rear (arrow B)
3	Pull seal (1) out of trim strip (2)
4	Remove seal (1) from rear door and clean bonding surface on front door edge with eraser disc	The bonding surface should be absolutely free of grease and dust. Dia. 100 mm removal disk with mounting shaft 3M Deutschland GmbH D-41453 Neuss Drill
		Cleaner	*BR00.45-Z-1025-04A
	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks		AH00.00-P-0013-01AK
	Install
5	Glue seal (1) onto front door edge of door from bottom to top and press down with roller	Do not stretch seal (1) when gluing on, otherwise, leakage can occur.
			Figure
6	Coat trim strip (2) with lubricant and install sealing (1) in trim strip (2)	Ensure that seal (1) is seated properly in trim strip (2).
		Antifriction agent	*BR00.45-Z-1010-06A
7	Close front door and rear door

Fig 2: Identifying Roller (171 589 06 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
