Remove/install power steering pump - AR46.30-P-0500SXH

MODEL 216, 221 with electrohydraulic power steering (EHPS)

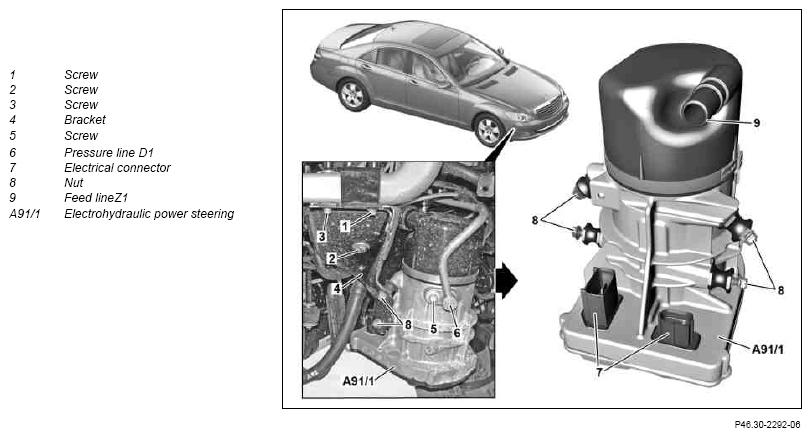

Fig 1: Identifying Power Steering Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Disconnect battery ground cable		AR54.10-P-0003SX
	Notes on battery		AH54.10-P-0001-01A
2	Open engine hood
3	Extract oil from power steering expansion reservoir	Before opening the hydraulic system, thoroughly clean the area surrounding the separation point. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system.
		Hand pump	Figure
4	Detach right front wheel
			AP40.10-P-4050SX
5	Remove front section of right wheelhouse trim in front fender
6	Remove screws/bolts (1, 2), unfasten screw/bolt (3) and turn electrohydraulic power steering (A91/1) outwards	MODEL 216 (except 216.376/377/379) without CODE 487 (Active Body Control (ABC)) MODEL 221 with ENGINE 156, 157, 272, 273, 275, 276, 278 without CODE 487 (Active Body Control (ABC))	*BA46.30-P-1014-01F
7	Detach electrical connectors (7) and set aside
8	Detach pressure line D1 (6), to do so remove screw (5) and seal connections	MODEL 216 (except 216.376/377/379) without CODE 487 (Active Body Control (ABC)) MODEL 221 with ENGINE 156, 157, 272, 273, 275, 276, 278 without CODE 487 (Active Body Control (ABC))	*BA46.30-P-1016-01F
		Record plug	Figure
9	Detach feed line Z1 (9) from electrohydraulic power steering (A91/1) and seal connections		AR46.25-P-3015SXH
		Record plug	Figure
10	Detach electrohydraulic power steering (A91/1) from holder (4), to do so remove nuts (8)	Check fasteners and replace if necessary.
		MODEL 216 (except 216.376/377/379) without CODE 487 (Active Body Control (ABC)) MODEL 221 with ENGINE 156, 157, 272, 273, 275, 276, 278 without CODE 487 (Active Body Control (ABC))	*BA46.30-P-1015-01F
11	Install in the reverse order
12	Fill power steering pump and bleed		AR46.30-P-0010SX
13	Read out fault memory using STAR DIAGNOSIS, delete if necessary and check electrohydraulic power steering (A91/1) for current flashware
			AD00.00-P-2000-04A
14	Teach-in electrohydraulic power steering (A91/1) using STAR DIAGNOSIS	When replacing electrohydraulic power steering (A91/1)
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Test run engine and check that steering system is not leaking and is functioning correctly

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
