Remove/install hydraulic line of power steering - AR46.25-P-3015SXC
MODEL 221.0/1, 216 connecting lines to oil cooler, without electrohydraulic power steering (EHPS)
| Remove/install | |||
| Before opening the hydraulic system, thoroughly clean the area surrounding the separation point. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system | |||
| 1.1 | Remove the left engine intake air duct | Vehicles with engine 272, 273 without code 487 Active Body Control (ABC) | |
| See "Remove/install air filter housing". | AR09.10-P-1150SX | ||
| 1.2 | Remove engine trim panel | Engine 642 | AR01.10-P-2405SXI |

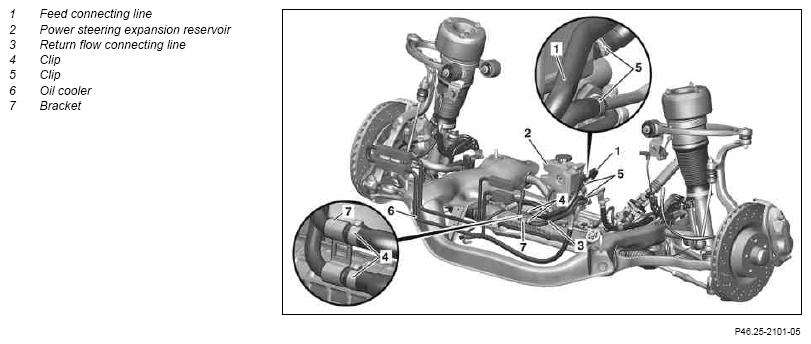

| 2 | Suction off oil from expansion reservoir (2) | Figure | |
| 3 | Detach left air ducting from radiator crossmember and remove | See Remove/install cooler of power steering: | |
| Model 216, 221 except model 216.379, 221.179 | AR46.25-P-3020SX | ||
| Model 216.379, 221.179 | AR46.25-P-3020SXM | ||
| 4 | Detach bracket (7) | ||
| 5 | Detach clamps (4, 5) of connecting lines (1, 3) | ||
| 6 | Detach connecting line (1) from expansion reservoir (2) and oil cooler (6) and remove | Figure | |
| 7 | Detach connecting line (3) from return line and oil cooler (6) and remove | Figure | |
| 8 | Install in the reverse order | ||
| 9 | Fill power steering pump and bleed | AR46.30-P-0010SX |
