Remove/install power steering radiator - AR46.25-P-3020SX
MODEL 221, 216 (except 221.179, 216.379) without electrohydraulic power steering (EHPS)

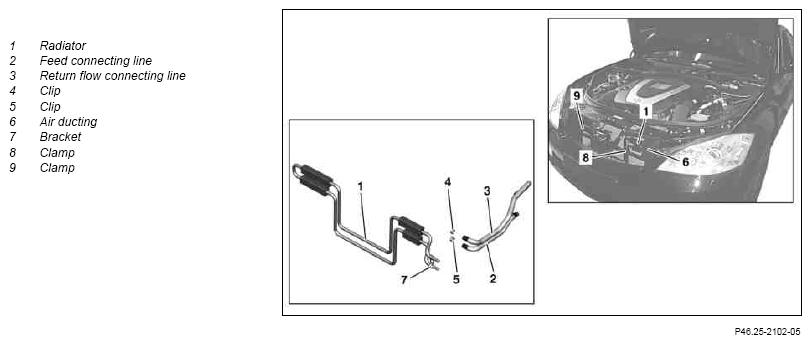

Shown on engine 272
| Remove/install | |||
| 1.1 | Remove the left engine intake air duct | Engine 272, 273 without code (487) Active Body Control (ABC) | |
| See "Remove/install air filter housing". | AR09.10-P-1150SX | ||
| 1.2 | Remove engine trim panel | Engine 642 | AR01.10-P-2405SXI |
| 2 | Extract oil from power steering expansion reservoir | Figure | |
| 3 | Detach air ducting (6) from radiator crossmember and remove | ||
| 4 | Unclip bracket (7) | ||
| 5 | Detach connecting lines (2, 3) from engine radiator (1) | Figure | |
| 6 | Unclip engine radiator (1) from clamps (8, 9) and remove | ||
| 7 | Install in the reverse order | ||
| 8 | Fill power steering pump and bleed | AR46.30-P-0010SX |
