Replace rear crankshaft radial seal - AR03.20-P-3063MC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 275 in MODEL 215, 216, 220, 221

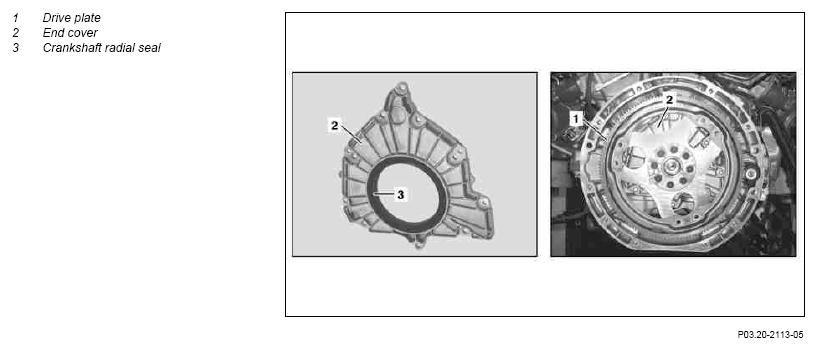

Fig 1: Identifying Crankshaft Radial Seal

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove automatic transmission	Model 215, 220	AR27.10-P-0500I
1	Remove automatic transmission	Model 216, 221	AR27.10-P-0500SZ
2	Remove drive plate (1)		AR03.30-P-8001MC
3	Remove the end cover (2)		AR01.40-P-8913MC
4	Remove rear crankshaft radial seal (3)	The rear crankshaft radial sealing ring (3) must only be removed once the end cover (2) has been taken off. First install end cover (2) and then install crankshaft radial sealing ring (3):↓
4	Remove rear crankshaft radial seal (3)	Install crankshaft radial seal	AR03.20-P-3063-01B
5	Install in the reverse order	Before installing transmission, inspect for oil leaks
