Remove/install flywheel/drive plate - AR03.30-P-8001MC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 275 in MODEL 215, 216, 220, 221

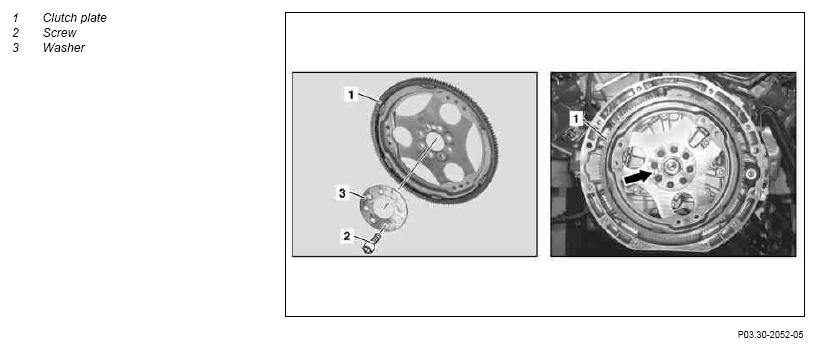

Fig 1: Identifying Flywheel Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove automatic transmission	Model 215, 220	AR27.10-P-0500I
1	Remove automatic transmission	Model 216, 221	AR27.10-P-0500SZ
2	Install retaining lock	Model 215, 220	AR03.30-P-5000B
2	Install retaining lock	Model 216, 221	AR03.30-P-5000SZ
3	Remove bolts (2) from drive plate (1)	replace bolts (2), as if they are used again, the connection may not be tight or the bolts may shear off.
3	Remove bolts (2) from drive plate (1)		*BA03.30-P-1003-01I
4	Remove washer (3)
5	Remove drive plate (1) with starter ring gear	The cylindrical pin (arrow) determines the installation position.
6	Install in the reverse order
7	Carry out initialization	If a new drive plate (1) is installed, perform initialization in the ME-SFI [ME] control unit with STAR DIAGNOSIS in the menu point "Control unit adaptation". STAR DIAGNOSIS Compact diagnosis system for passenger cars

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 275, 285
BA03.30-P-1003-01I	Bolt, flywheel or two-mass flywheel/drive plate to crankshaft	Stage 1	Nm	45
BA03.30-P-1003-01I		Stage 2	∠°	90
