Remove/install retaining lock for crankshaft/ring gear - AR03.30-P-5000SZ

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 275 in MODEL 216, 221

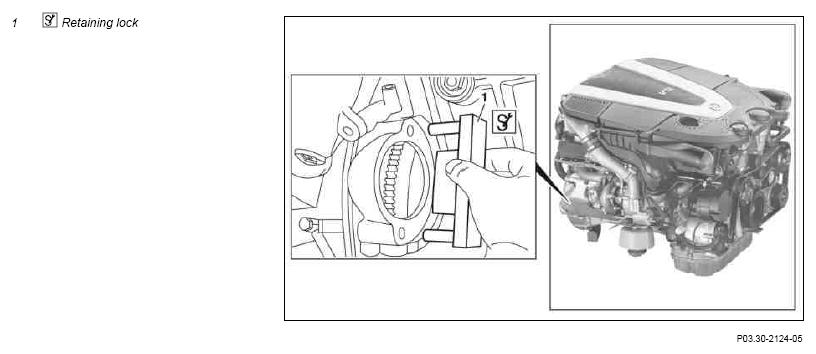

Fig 1: Identifying Crankshaft Retaining Lock Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Install/remove
1	Remove starter		AR15.30-P-7100SZ
2	Insert retaining lock (1)	Slide retaining lock (1) into starter opening and allow to latch in starter ring gear; crank engine at crankshaft in direction of rotation if necessary.
2	Insert retaining lock (1)		Fig 2
3	Remove in the reverse order

Fig 2: Identifying Retaining Lock (285 589 02 40 00)

Courtesy of MERCEDES-BENZ USA
