Remove/install front engine mounts and/or engine support - AR22.10-P-1260SXH

ENGINES 272.974 in MODEL 221.095/195

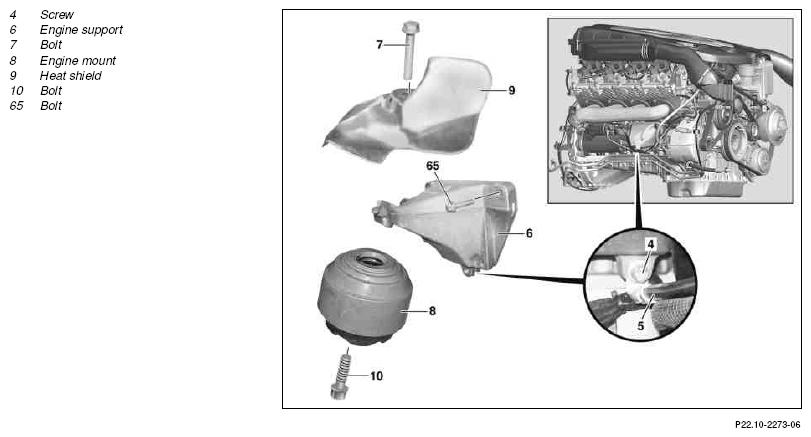

Fig 1: Identifying Front Engine Mounts And Engine Support Remove/Install Components
G10126817Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
    IMPORTANT Work on high-voltage systems or on hybrid components may only be conducted by trained workshop personnel.
    IMPORTANT Engine mounts must be replaced in pairs.
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
1 Perform disable for the high-voltage on-board electrical system When removing the right-hand engine support (6)   AR54.10-P-1150SXH
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
2 Remove air filter housing   AR09.10-P-1150SX
3 Remove bottom engine compartment paneling   AR61.20-P-1105SX
4 Remove right catalytic converter When removing the right-hand engine mount (8) AR49.10-P-7100SX
5 Remove heat shield lower catalytic converter from bracket and transmission bell housing and remove to the rear When removing right-hand engine mount (8)
6 Remove heat shield between exhaust manifold and power electronics and remove to the bottom rear
7 Remove coolant line between power electronics and DC/DC converter from front axle carrier When removing right-hand engine mount (8)
8 Unclip coolant line below on the alternator bracket When removing right-hand engine mount (8)
9 Remove screw (10) TORQUE SPECIFICATION *BA22.10-P-1001-03D
10.1 Remove vacuum line When removing left-hand engine mount (8) AR43.10-P-0355SXH
10.2 Remove connector on ignition coil for cylinder 1When removing right-hand engine mount (8)
11 Remove bolts (7) SPECIAL TOOL Figure
TORQUE SPECIFICATION
INSTALLATION IMPORTANT Align anti-twist lock on engine mount (8) and heat shield (9) to cutout and raised point on engine support (6).
*BA22.10-P-1002-03D
12 Attach engine hoist and raise engine NOTES No not apply tension to or damage lines or hoses. AR33.10-P-0105SX
13 Remove pressure line D2 for power steering from front axle carrier and rack-and-pinion steering When removing right-hand engine mount (8)   AR46.25-P-3015SXH
14 Remove right engine mount (8) downwards to the rear IMPORTANT Pay attention to environmental protection regulations for disposal of engine mounts (8). Dispose engine mounts (8) into mixed scrap.
15 Remove left heat shield (9) and left engine mount (8) downwards to the rear When removing the left-hand engine mount (8)
IMPORTANT Pay attention to environmental protection regulations for disposal of engine mounts (8). Dispose engine mounts (8) into mixed scrap.

  Left engine support
16 Remove engine support (6) from crankcase by removing bolts (65) TORQUE SPECIFICATION *BA22.10-P-1001-02A
17 Remove engine crossmember (6) from below
  Right engine support
18 Remove power electronics from bracket and intermediate flange   AR08.10-P-0011SXH
19 Remove heat shield bracket (9) from engine support (6) and alternator
20 Remove alternator line set bracket from engine support (6)
21 Remove oil dipstick guide tube from engine oil pan and front cover and turn in such a way that the bolts (65) from engine support (6) are accessible
22 Remove power electronics bracket from engine support (6)
23 Remove bolts (65) and take out engine support (6) towards the bottom rear TORQUE SPECIFICATION *BA22.10-P-1001-02A
24 Install in the reverse order
ENGINE SUPPORT (ENGINE SIDE)

Number Designation Engine 272
BA22.10-P-1001-02A Bolt, engine support to cylinder crankcase Stage 1 Nm 20
Stage 2 ∠° 90
ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation Model 221.02/05/07/095/12/15/17/195
BA22.10-P-1001-03D Bolt, front engine mount to front axle carrier     Nm 35
BA22.10-P-1002-03D Bolt connecting front engine mount to engine support M10   Nm 50
M12 Stage 1 Nm 85
  Stage 2 ∠° 90
Fig 2: Identifying Set Of Engine Bearing Wrenches (001 589 01 16 00)
G07333153Courtesy of MERCEDES-BENZ USA
