Remove/install oil pan - AR01.45-P-7500SYZ

ENGINES 642 in MODEL 221.08/18

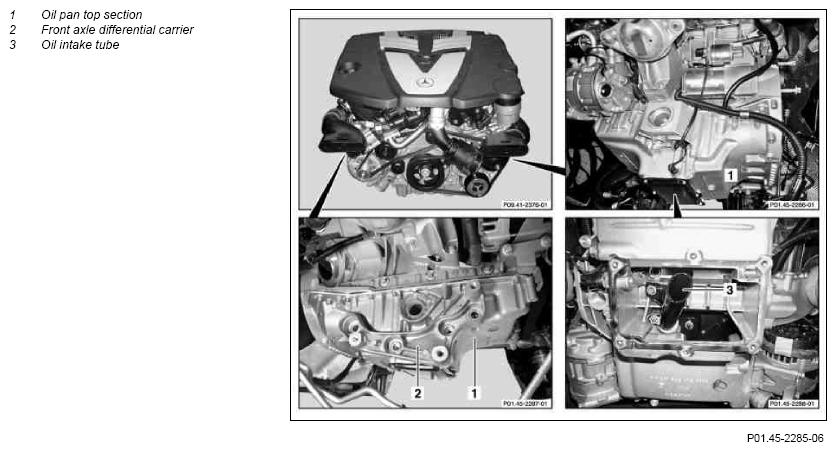

Fig 1: Identifying Oil Pan Remove/Install Components
G10126283Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. AS54.10-Z-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on battery   AH54.10-P-0001-01A
1 Disconnect battery ground line   AR54.10-P-0003SX
2 Remove engine cover INSTALLATION IMPORTANT Ensure correct seating of the engine cover. AR01.10-P-2405SXI
3 Remove diesel particulate filter   AR14.40-P-1000SXI
4 Remove transmission with torque converter   AR27.10-P-0500SYZ
5 Remove end cover   AR01.40-P-8913SXI
6 Attach engine hoist   AR33.10-P-0105SX
7 Remove front axle   AR33.10-P-0100SYZ
8 Remove front axle gear   AR33.30-P-0525SYZ
9 Drain/collect engine oil INSTALLATION NOTES Replace seal on oil drain screw to prevent leakage.
TORQUE SPECIFICATION
Engine 642 except code 474 Particulate filter		 *BA01.45-P-1006-01Q
FLUID SPECIFICATION
Engine 642 with code 474 Particulate filter		 *BF18.00-P-1001-01A
FLUID SPECIFICATION *BF18.00-P-1001-01S
10 Remove front axle differential (2) carrier to oil pan top section (1)
11 Remove oil pan bottom section   AR01.45-P-7555SYZ
TORQUE SPECIFICATION *BA01.45-P-1003-01Q
12 Remove oil intake tube (3) for oil pump
TORQUE SPECIFICATION *BA01.45-P-1013-01Q
13 Detach oil dipstick guide tube
14 Remove A/C compressor (A9) and place to one side IMPORTANT Do not disconnect refrigerant compressor (A9) and electrical connectors.
TORQUE SPECIFICATION *BA83.55-P-1005-01A
15 Remove bolts to oil pan top section (1) INSTALLATION IMPORTANT Observe different bolt lengths and bolt diameters.
TORQUE SPECIFICATION *BA01.45-P-1001-01Q
TORQUE SPECIFICATION *BA01.45-P-1002-01Q
TORQUE SPECIFICATION *BA01.45-P-1007-01Q
TORQUE SPECIFICATION *BA01.45-P-1008-01Q
TORQUE SPECIFICATION *BA01.45-P-1009-01Q
TORQUE SPECIFICATION *BA01.45-P-1011-01Q
16 Remove oil pan top section (1) IMPORTANT Detach oil pan top section (1) using slide hammer puller. Do this by screwing slide hammer puller into thread of oil level switch.
NOTES Tighten slide hammer puller to avoid damaging the thread.
    SPECIAL TOOL Impact extractor Fig 2
    SPECIAL TOOL Threaded stud Fig 3
IMPORTANT Notes on sealant path for oil pan   AH01.45-P-0001-01OM
    Loctite 5970 sealant *BR00.45-Z-1013-01A
CLEAN Clean
17 Clean sealing surfaces NOTES Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces. AR01.00-P-0050-01A
Loctite 7200 *BR00.45-Z-1038-04A
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
18 Install in the reverse order
19 Read out fault memory
  Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
INSPECT Checking
20 Check engine oil level, and correct IMPORTANT Check engine oil level with engine at operating temperature.
Engine 642 without particulate filter code 474		 AR18.00-P-3035-01SXI
FLUID SPECIFICATION
Engine 642 with particulate filter code 474		 *BF18.00-P-1001-01A
FLUID SPECIFICATION *BF18.00-P-1001-01S
21 Check for leaks with engine running
OIL PAN

Number Designation Engine 642
BA01.45-P-1001-01Q Oil pan top section on cylinder block top at front M6 Nm 14
BA01.45-P-1002-01Q Oil pan top section on cylinder crankcase on transmission side M8 Nm 20
BA01.45-P-1003-01Q Oil pan bottom section on oil pan top section M6 Nm 14
BA01.45-P-1006-01Q Oil drain screw on oil pan M12 Nm 30
M24 Nm 45
BA01.45-P-1007-01Q Bolt, oil pan to cylinder crankcase M6 Nm 14
M8 Nm 20
M10 Nm -
BA01.45-P-1008-01Q Bolt, oil pan to timing case cover M6 Nm 14
BA01.45-P-1009-01Q Bolt, oil pan to crankshaft housing sealing at the rear M6 Nm 14
BA01.45-P-1011-01Q Bolt, oil line bracket to oil pan M6 Nm 11
BA01.45-P-1013-01Q Oil suction pipe on oil pan M6 Nm 14
REFRIGERANT COMPRESSOR

Number Designation Engine 642 in model 221
BA83.55-P-1005-01A Bolt, refrigerant compressor Nm 20
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 without particulate filter up to engine no. 64293040458147 Engine 642.930 without particulate filter as of engine no. 64293040458148 Engine 642.932/961 without particulate filter
BF18.00-P-1001-01A Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specification Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 228.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.3). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1 Multigrade engine oils (specification 229.5). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
ENGINE LUBRICATION SYSTEM

Number Designation Engine 642.930 with particulate filter up to engine No. 64293040458147 Engine 642.930 with particulate filter starting from engine No. 64293040458148 Engine 642.932/961 with particulate filter
BF18.00-P-1001-01S Engine oil Filling capacity (oil and filter change) Liters 9.5 8.0 8.0
Specifications for Operating Fluids Specification Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 228.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.31). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1 Low SPAsh multigrade service engine oils (specification 229.51). See https://bevo.mercedes-benz.com/index.php?language_id=1
Fig 2: Identifying Impact Extractor (116 589 20 33 00)
G07742706Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Threaded Stud (102 589 00 34 00)
G10126285Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
