Notes on sealant path for oil pan - AH01.45-P-0001-01OM
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642
General information on the sealing surface:
- Free of anticorrosion agents
- Free of machining residue
- Oil and grease-free
- Dust-free
- Must be flat (replace bent components)
- Observe sealant path (A or F)
- Discontinuity of the sealant bead not permissible
- Do not spread sealing bead
- Component temperature: min. +7°C up to a max. of +25°C
- Sealant temperature: min. +7°C up to a max. of +25°C
- Maximum assembly time: 7 minutes
- Sealant bead diameter: 2 mm
- Nozzle diameter: 1.5 mm

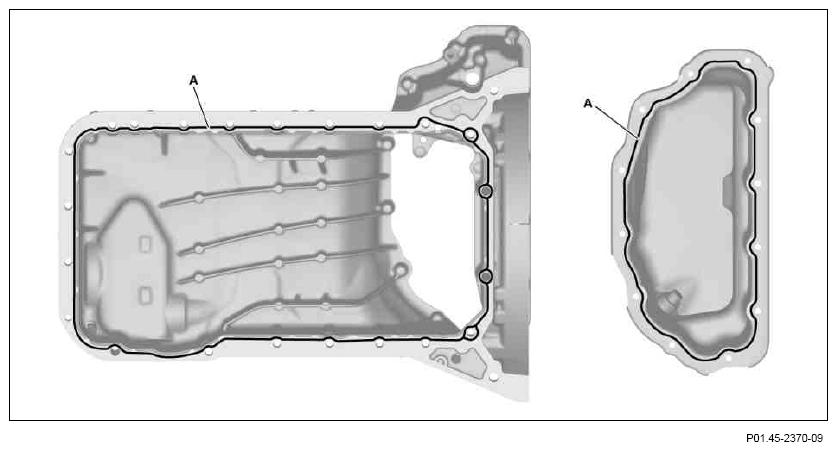

ENGINE 642.910/920/852

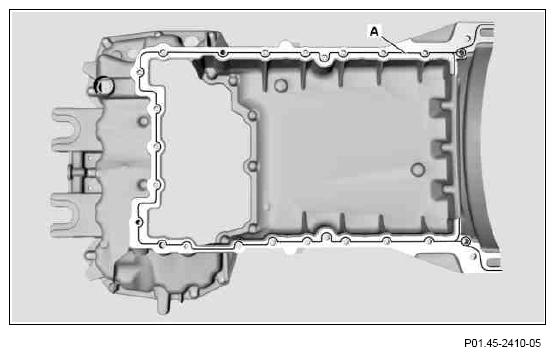

ENGINE 642.930/862

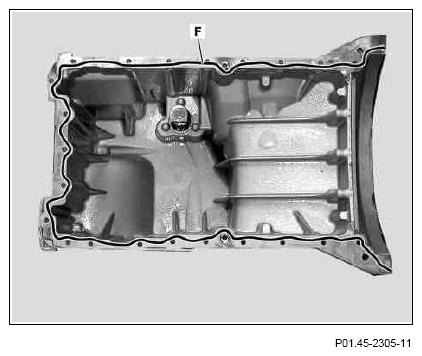

ENGINE 642.921/932/961/868/867
ENGINE 642.940/950/970/872/886
ENGINE 642.975/884
ENGINE 642.826
ENGINE 642.861
