Remove/install bottom part of oil pan - AR01.45-P-7555L

ENGINES 137 in MODEL 215, 220

ENGINES 275 in MODELS 215, 216, 220, 221, 230

Shown on engine 137

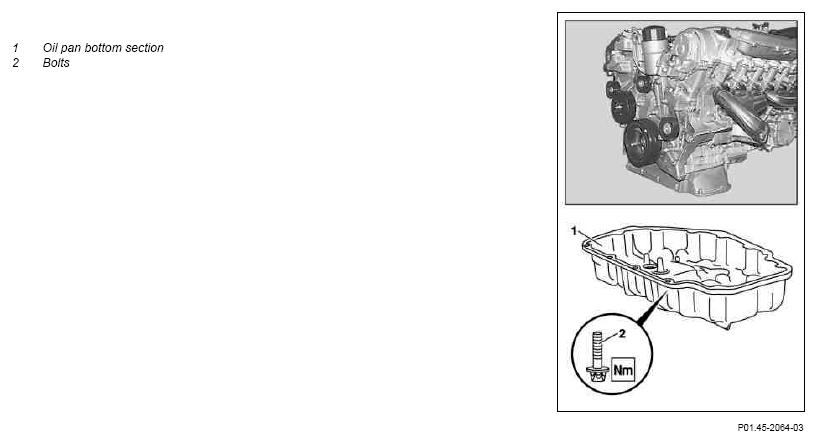

Fig 1: Identifying Oil Pan Bottom Part Remove/Install Components - Shown On Engine 137

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Drain engine oil	Refer to engine oil and filter change:
		Model 215.376/379, 220.176/179, 230.476/477/479	AP18.00-P-0101H
		Model 215.378, 220.178/878	AP18.00-P-0101L
		Model 216, 221	AP18.00-P-0101SZ
2	Remove bolt (2)		*BA01.45-P-1002-01B
			Fig 2
3	Remove oil pan bottom section (1)	Observe sealant flow: ↓
		Notes on sealant path for oil pan	AH01.45-P-0001-01A
			Figure
		Loctite sealant 5970	*BR00.45-Z-1013-01A
	Clean
4	Clean sealing surfaces	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
5	Install in the reverse order
6	Check engine oil level	The vehicle must be positioned horizontally on the wheels, otherwise false measurements occur: ↓ Perform adjustments to the control system
		Model 215, 220, 230	AR54.30-P-1000-02OPM
		Model 216, 221	AR54.30-P-1000-02OPS
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Check for oil leaks with engine running

Fig 2: Identifying External Torx Set (001 589 76 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA
