Notes on sealant path for oil pan - AH01.45-P-0001-01A
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 137.970, 275, 277, 279

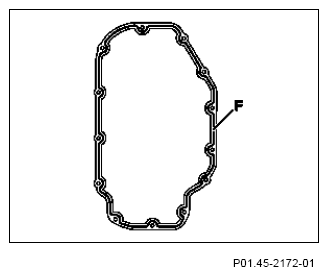

The line (F) identifies the sealing compound flow.
The sealant must be applied only to specified surfaces with a bead of 2.0 mm (±0.5 mm).
The sealant must be processed within 10 minutes.
The bead should not be spread. Only the approved sealant may be used.
