Remove/install front cover on cylinder head - AR01.30-P-5700MBR

ENGINES 157, 278 in MODEL 216, 221 On the right cylinder head

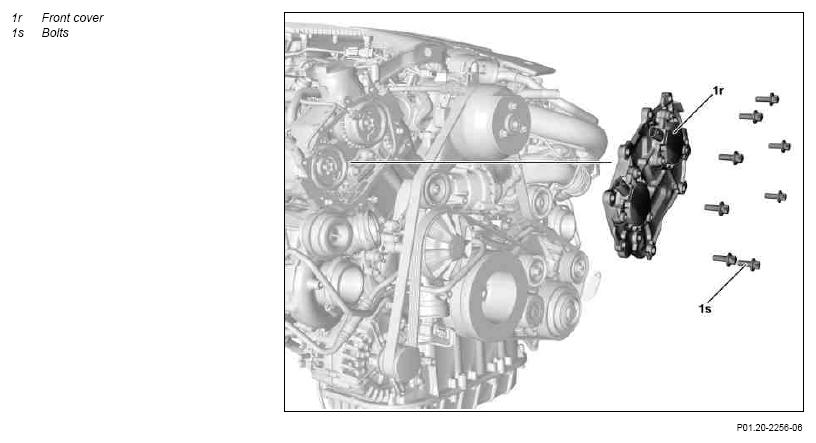

Fig 1: Identifying Cylinder Head Front Cover Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

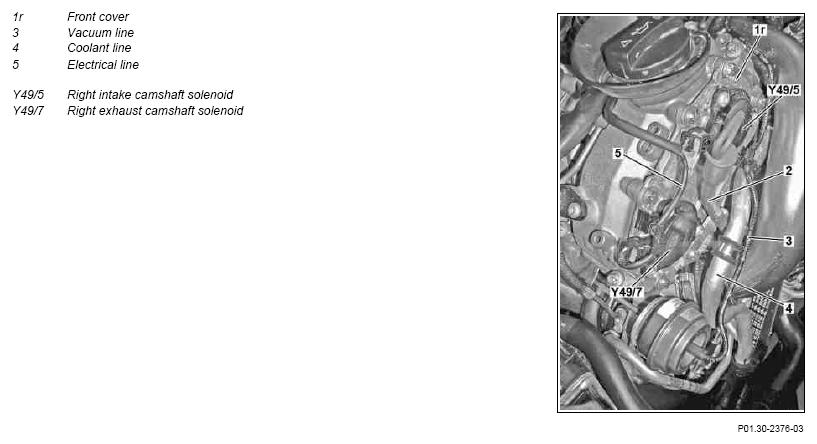

Fig 2: Identifying Cylinder Head Front Cover Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on threaded connections with aluminum screws		AH00.00-P-0006-01RM
1	Remove engine covers
2	Remove right charge air ducts		AR09.41-P-8620MMB
3	Unclip vacuum line (3) to coolant line (4)
4	Detach coolant line (4) at timing case cover
5	Disconnect electrical connectors at camshaft solenoids (Y49/5, Y49/7)
6	Unclip electrical line (5) on front cover (1l)
7	Remove bolts (1s) on front cover (1)	Replace bolts (1s).
			*BA01.30-P-1003-01X
8	Carefully loosen front cover (1l) at prying lugs and detach to the front	Apply sealant to the front cover (1): ↓
		Observe notes on sealant path for front cover (1l) on cylinder head.	AH01.30-P-1000-02MM
			Figure
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
	Clean
9	Clean sealing surfaces on cylinder head, on cylinder head cover and on front cover (1r)	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
10	Remove camshaft solenoids (Y49/5, Y49/7) from front cover (1l)	When replacing the front cover (1)	AR05.20-P-7295MMB
11	Install in the reverse order
	Checking
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Carry out engine test run while checking engine for function and oil leaks

CYLINDER HEAD

Number	Designation		Engine 157	Engine 278
BA01.30-P-1003-01X	Bolt, front cover to cylinder head/cylinder head cover	Nm	5	5

Fig 3: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite 5970 sealant	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
