Remove/install oil pump - AR18.10-P-6020L

ENGINE 137 in MODEL 215, 220

ENGINE 275 in MODEL 215, 216, 220, 221

Shown on engine 137

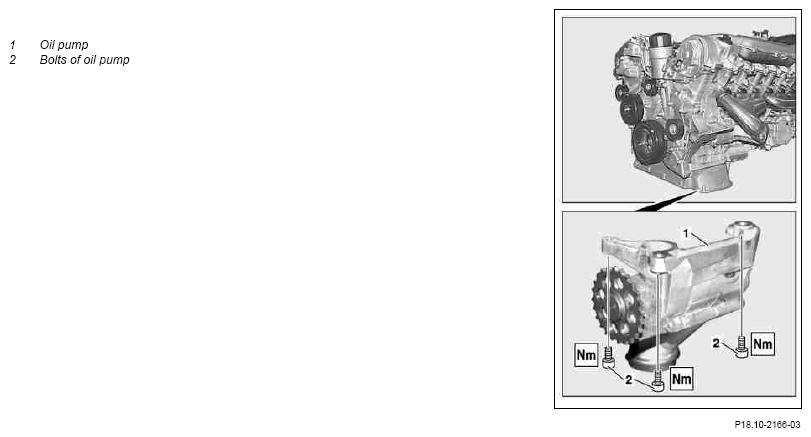

Fig 1: Identifying Oil Pump Remove/Install Components - Shown On Engine 137

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bottom part of oil pan		AR01.45-P-7555L
2	Remove bolts for oil pump (2)	Push back chain tensioner and take off chain. Clean strainer of oil pump (1) Fill oil pump (1) with engine oil so that it pumps oil when first started.
			*BA18.10-P-1001-01B
		Screwdriver hinged bit	Fig 2
3	Install in the reverse order

Fig 2: Identifying Screwdriver Hinged Bit (112 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
