Remove/install lamp unit - AR82.10-P-4730GQ
MODEL 166
| Risk of death due to high voltage in xenon headlamps. Risk of explosion/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components at xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with skin | Do not touch parts conducting high voltage. Persons with active electronic implants (e.g. cardiac pacemakers) must never work on xenon headlamps. Switch off the entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of left front lamp unit (E1) or right front lamp unit (E2) | MODEL 166 with CODE 615 (Bi-xenon headl. (LHD veh.) w. corn. function) MODEL 166 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 166 with CODE 622 (Intelligent Light System (right-hand traffic)) When replacing the left front lamp unit (E1) or the right front lamp unit (E2). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Remove front bumper | AR88.20-P-2000GQ | |

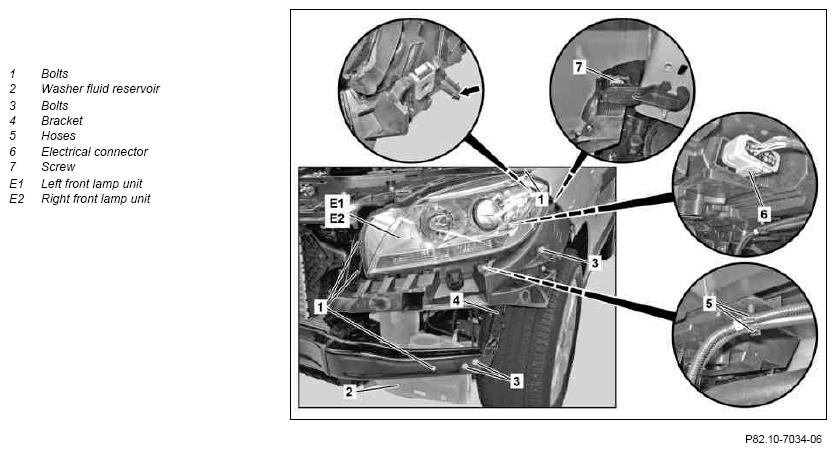

| 4 | Remove bolt (1) | ||
| 5 | Loosen washing water reservoir (2) | MODEL 166 (except 166.074/874) | |
| AR82.35-P-6000GZ | |||
| 6 | Remove bolt (3) | ||
| 7 | Remove bracket (4) | ||
| 8 | Unclip hoses (5) | ||
| 9 | Release and disconnect electrical connector (6) | ||
| 10 | Remove screw (7) | ||
| 11 | Unclip catch tab (arrow) | ||
| 12 | Remove left front lamp unit (E1) or right front lamp unit (E2) | ||

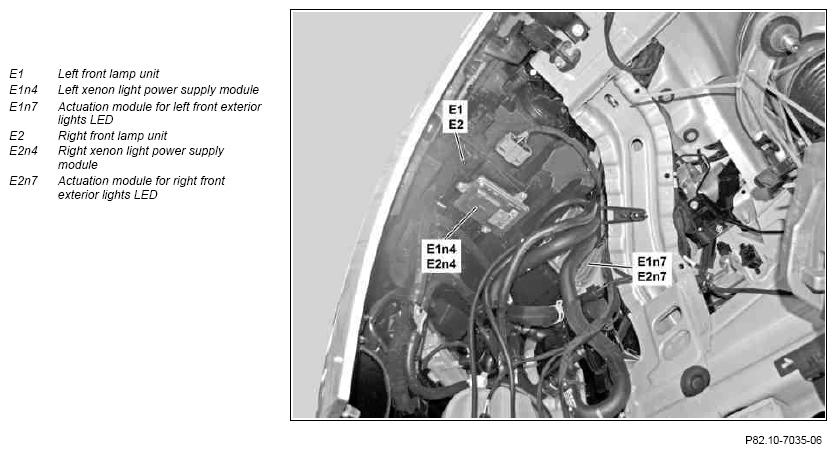

| 13 | Remove left xenon light power supply module (E1n4) or right xenon light power supply module (E2n4) | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 166 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic)) |
AR82.10-P-4635GQ | ||
| 14 | Remove left front exterior lights LED actuation module (E1n7) or right front exterior lights LED actuation module (E2n7) | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 166 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic)) |
AR82.10-P-4655GQ | ||
| 15 | Install in the reverse order | ||
| 16 | Check headlamp adjustment and correct if necessary | ||
| Check and correct the adjustment of the headlamps | AP82.10-P-8260GZA |
