Remove/install front bumper - AR88.20-P-2000GQ

MODEL 166

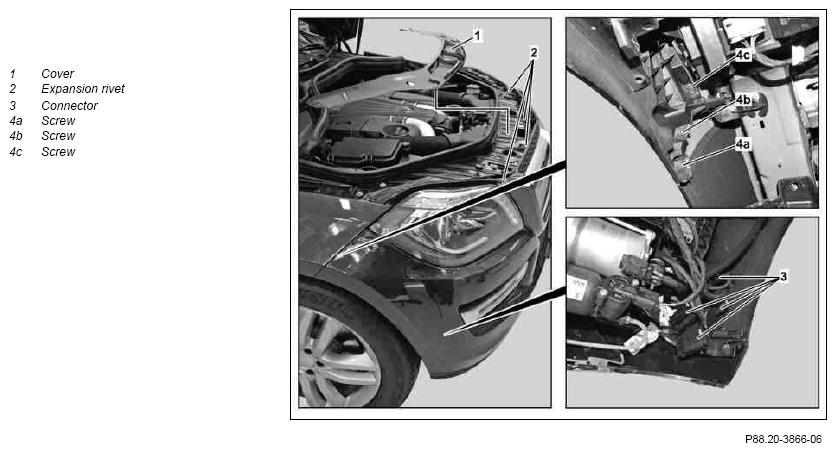

Fig 1: Identifying Front Bumper Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shows model 166.874

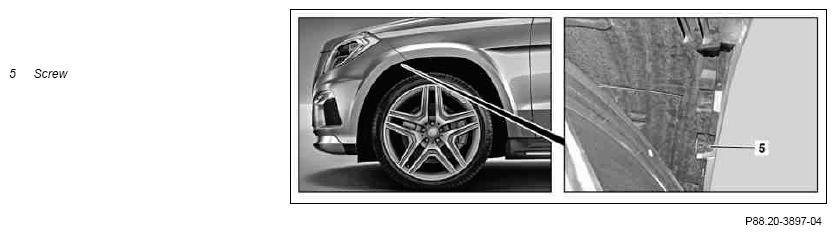

Fig 2: Identifying Front Bumper Remove/Install Components - Shows Model 166.874

Courtesy of MERCEDES-BENZ USA

	Remove/install
	General information on the impact absorber		AH88.20-P-1000-01A
1	Disconnect battery ground cable	MODEL 166 with CODE U60 (Pedestrian protection)	AR54.10-P-0003GZ
2	Open engine hood		AR88.40-P-1000GQ
3	Remove cover (1)
4	Remove expansion rivet (2)
5	Detach left and right front section on fender liner in front fenders in area of bumper		AR88.10-P-1300GQ
6	Remove corresponding underfloor paneling		AR61.30-P-1001GQ
7	Disconnect electrical connectors (3)	The number of electrical connectors (3) differs depending on the vehicle equipment.
8	Unscrew bolts (5) on right and left fender flare	MODEL 166.874
9	Unscrew left and right bolt (4a)
10	Loosen left and right bolt (4b)	MODEL 166.8
11	Loosen left and right bolt (4c)
12	Unhook bumper at sides and remove toward front
13	Install in the reverse order
14	Adjust bumper		AR60.00-P-0700-01GQ
		Gap dimension	*BE60.00-P-1002-01Z
		Gap dimension	*BE60.00-P-1001-01Z
		Feeler gauge	Fig 3
15	Check PARKTRONIC operating state	MODEL 166 with CODE 220 (PARKTRONIC) with CODE 235 (Active Parking Assist) Switch on ignition and PARKTRONIC, engage reverse gear and release parking brake. PARKTRONIC automatically performs a self-test and operational readiness is signaled via the warning indicator.
16	Calibrate camera with STAR DIAGNOSIS
		MODEL 166 with CODE 501(360 degree camera)	AD00.00-P-2000-04A

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation				MODEL 166
BE60.00-P-1001-01Z	Gap dimension	Engine hood to fender	Dimension "A"	mm	3, 8 (±1)
		Engine hood to headlamp	Dimension "B"	mm	3, 9 (±1)
		Engine hood to bumper	Dimension "C"	mm	5, 4 (±1, 5)
		Fender to A-pillar	Dimension "D"	mm	3, 5 (±1)
		Front door to fender	Dimension "E"	mm	4, 3 (±0, 7)
		Front door to rear door	Dimension "F"	mm	4, 8 (±0, 7)
		Rear door to rear fender	Dimension "I"	mm	4, 3 (±0, 7)
				For picture, see	AR60.00-P-0700-01G

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation				MODEL 166
BE60.00-P-1002-01Z	Gap dimension	Bumper to headlamp	Dimension "S"	mm	3 (±0, 5)
		Fender to headlamp	Dimension "R"	mm	3, 9 (±1)
		Engine hood to A-pillar	Dimension "Q"	mm	3, 5 (±1)
				For picture, see	AR60.00-P-0700-01GQ

Fig 3: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
