Remove/install fender liner in front fender - AR88.10-P-1300GQ
MODEL 166
MODEL 166
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ | |

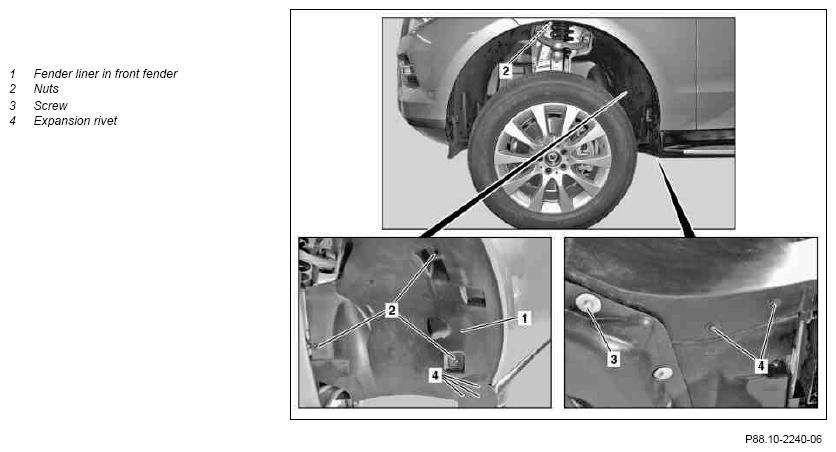

| 2 | Remove fender liner front section in front fender (1) | AR88.10-P-1310GQ | |
| 3 | Unscrew nuts (2) | ||
| 4 | Unscrew bolt (3) | ||
| 5 | Remove expansion rivet (4) | ||
| 6 | Remove fender liner in front fender (1) | ||
| 7 | Install in the reverse order |
