Location and assignment of ground points - GF00.19-P-2000NAA
MODEL 166, 292
| W1/4 | Cockpit ground point | Location | GF00.19-P-2001-04NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAA | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBA | ||
| W2 | Right front ground point at lamp unit | Location | GF00.19-P-2001-02NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAD | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBD | ||
| W2/1 | Right front ground point | Location | GF00.19-P-2001-02NAA |
| Assignment up to model year 2016, M276 | PE07.08-P-2101NAC | ||
| Assignment up to model year 2016, M157, M278 | PE07.08-P-2101NAF | ||
| Assignment up to model year 2016, M642 | PE07.16-P-2101NAB | ||
| Assignment up to model year 2016, M651 | PE07.16-P-2101NAD | ||
| Assignment as of model year 2016, M276 | PE07.08-P-2101NBA | ||
| Assignment as of model year 2016, M157, M278 | PE07.08-P-2101NBF | ||
| Assignment as of model year 2016, M642 | PE07.16-P-2101NBA | ||
| Assignment as of model year 2016, M651 | PE07.16-P-2101NBD | ||
| W6 | Inner left D-pillar ground point | Location | GF00.19-P-2001-06NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAD | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBD | ||
| W7 | Right rear center section ground point | Location | GF00.19-P-2001-09NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAC | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBC | ||
| W7/9 | Trailer hitch ground point | Location | GF00.19-P-2001-09NAA |
| Assignment up to model year 2016 | PE31.19-P-2101NAA | ||
| Assignment as of model year 2016 | PE31.19-P-2101NBA | ||
| W8 | Liftgate ground point | Location | GF00.19-P-2001-09NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAF | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBE | ||
| W8/1 | Left tailgate ground point | Location | GF00.19-P-2001-06NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAE | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBE | ||
| W8/2 | Right tailgate ground point | Location | GF00.19-P-2001-09NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAE | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBE | ||
| W9 | Left front ground point (at lamp unit) | Location | GF00.19-P-2001-01NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAC | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBC | ||
| W10 | Front right on-board electrical system battery ground point | Location | GF00.19-P-2001-05NAA |
| Assignment up to model year 2016, M157, M276, M278 | PE15.00-P-2101NAA | ||
| Assignment up to model year 2016, M642, M651 | PE15.00-P-2101NAB | ||
| Assignment as of model year 2016, M157, M276, M278 | PE15.00-P-2101NBA | ||
| Assignment as of model year 2016, M642, M651 | PE15.00-P-2101NBB | ||
| W10/15 | Additional battery ground point | Location | GF00.19-P-2001-09NAA |
| Assignment up to model year 2016 | PE15.00-P-2103NAA | ||
| Assignment as of model year 2016, M157, M276, M278 | PE15.00-P-2101NBA | ||
| Assignment as of model year 2016, M642, M651 | PE15.00-P-2101NBB | ||
| W11 | Combustion engine ground point | Location of M276, M278 | GF00.19-P-2001-02NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAC | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBC | ||
| W11/2 | Right combustion engine ground point | Location | GF00.19-P-2001-02NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAC | ||
| Assignment as of model year 2016 | PE07.08-P-2101NBD | ||
| W11/3 | Left combustion engine ground point | Assignment as of model year 2016 | PE07.08-P-2101NBD |
| W12 | Ground point (center console) | Location | GF00.19-P-2001-04NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAA | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBA | ||
| W15/1 | Right footwell ground point | Location | GF00.19-P-2001-05NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAB | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBB | ||
| W15/2 | Left footwell ground point | Location | GF00.19-P-2001-04NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAD | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBD | ||
| W15/5 | Left front footwell ground point | Location | GF00.19-P-2001-04NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAC | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBD | ||
| W15/9 | Ground point / PTC heater booster | Location | GF00.19-P-2001-04NAA |
| Assignment up to model year 2016, AAC | PE83.40-P-2101NAA | ||
| Assignment up to model year 2016, C-AAC | PE83.40-P-2105NAB | ||
| W17 | Right rear seat ground point | Location | GF00.19-P-2001-05NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAF | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBE | ||
| W17/1 | Left rear seat ground point | Location | GF00.19-P-2001-04NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAB | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBB | ||
| W17/6 | Rear seat cross member ground point | Location | GF00.19-P-2001-05NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAC | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBC | ||
| W18/5 | Roof ground point | Location | GF00.19-P-2001-05NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAA | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBA | ||
| W26 | Supplemental restraint system control unit ground point | Location | GF00.19-P-2001-04NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAD | ||
| Assignment as of model year 2016, except WSS | PE91.60-P-2106NBA | ||
| Assignment as of model year 2016, WSS | PE91.60-P-2102NBA | ||
| W29/3 | Left C-pillar ground point | Assignment | PE00.19-P-2800NBE |
| W29/4 | Ground point / right C-pillar | Assignment | PE00.19-P-2800NBE |
| W29/8 | Left D-pillar ground point | Location | GF00.19-P-2001-06NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAE | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBE | ||
| W29/9 | Right D-pillar ground point | Location | GF00.19-P-2001-09NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAE | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBE | ||
| W30/4 | Power steering pump ground point | Location | GF00.19-P-2001-02NAA |
| Assignment up to model year 2016 | PE46.35-P-2101NAA | ||
| Assignment as of model year 2016 | PE46.35-P-2101NBA | ||
| W52/7 | PTC heater booster ground connection | Assignment as of model year 2016 | PE83.40-P-2101NBA |
| W52/11 | Upper right front longitudinal member ground point | Location | GF00.19-P-2001-02NAA |
| Assignment up to model year 2016 | PE00.19-P-2800NAE | ||
| Assignment as of model year 2016 | PE00.19-P-2800NBF | ||
| W52/16 | Right rear longitudinal member ground point | Assignment as of model year 2016 | PE00.19-P-2800NBF |
| W70 | Electronic Stability Program ground point | Location | GF00.19-P-2001-01NAA |
| Assignment up to model year 2016 | PE42.47-P-2000NAA | ||
| Assignment as of model year 2016, code ME05 | PE42.47-P-2000NBB | ||
| Assignment as of model year 2016, except code ME05 | PE42.47-P-2000NBA | ||
| W98/1 | Shielding 1 ground point | Assignment | PE07.16-P-2101NBB |
| W98/2 | Shielding 2 ground point | Assignment | PE07.16-P-2101NBB |

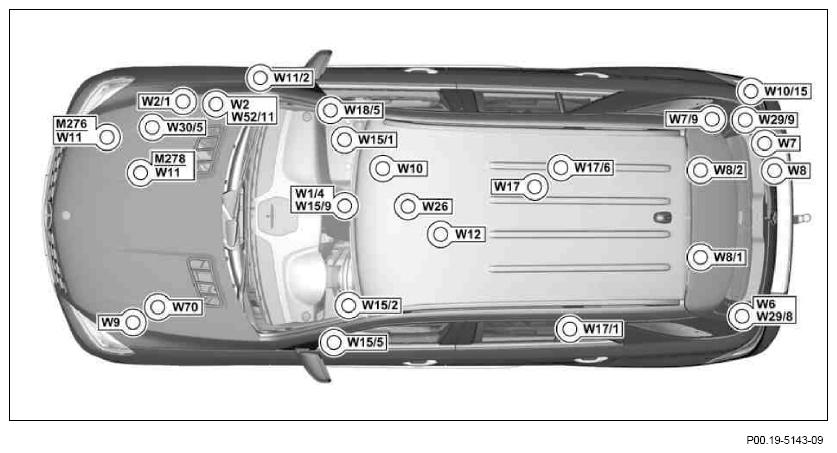

| Location of left engine compartment ground points | GF00.19-P-2001-01NAA | ||
| Location of right engine compartment ground points | GF00.19-P-2001-02NAA | ||
| Location of left interior compartment ground points | GF00.19-P-2001-04NAA | ||
| Location of right interior compartment ground points | GF00.19-P-2001-05NAA | ||
| Location of ground points - left trunk | GF00.19-P-2001-06NAA | ||
| Location of ground points - trunk, right | GF00.19-P-2001-09NAA |
