Location of left interior compartment ground points - GF00.19-P-2001-04NAA

MODEL 166, 292

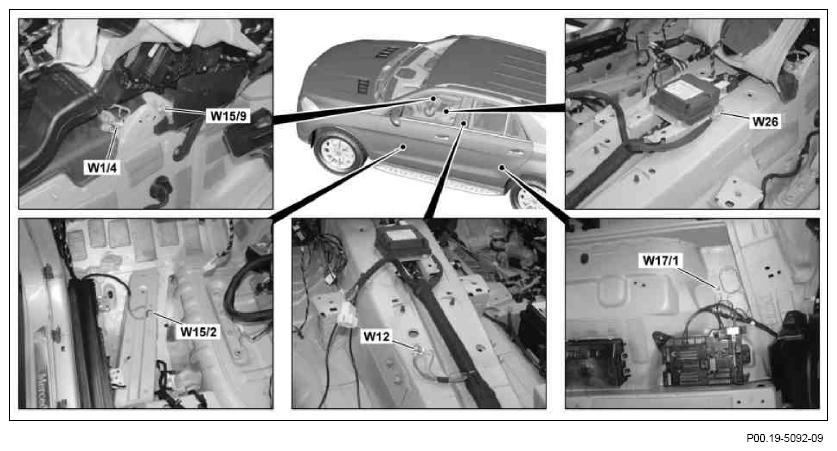

Fig 1: Left Interior Compartment Ground Points Location (1 Of 2)

Courtesy of MERCEDES-BENZ USA

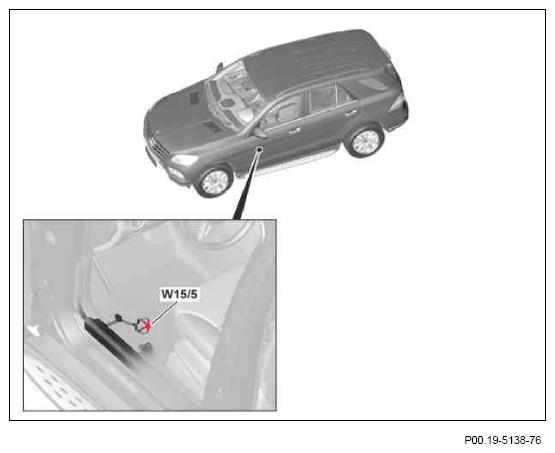

Fig 2: Left Interior Compartment Ground Points Location (2 Of 2)

Courtesy of MERCEDES-BENZ USA
