Replace Brake Lines - AR42.10-P-0020B

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 166, 172, 176, 177, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 251, 253, 257, 292

MODIFICATION NOTES

11.07.2018 Flaring the brake lines, new description. Step 9

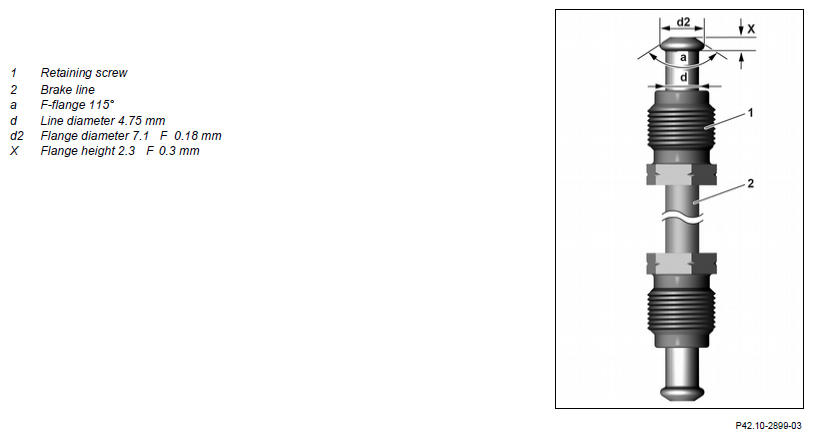

Shown on brake line (2) with line diameter 4.75 mm (d)

G12083226
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
  Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
  Notes on handling, transport and storage of composite brake disks Model 177, 205, 213, 217, 222, 238, 253, 257 AH42.10-P-9406-12LF
  Brake fluid notes   AH42.50-P-0001-01A
  Notes on repairs to brake system   AH42.00-P-0003-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Risk of death  caused by vehicle slipping or toppling off of the lifting platform.
Raise vehicle.		 Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.
Model 117, 156, 166, 172, 176, 177, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 251, 253, 257, 292		 AS00.00-Z-0010-01A
    Model 257 AR00.60-P-1005-02FR
    Model 177 AR00.60-P-1006MFA
    Model 205, 213, 238, 253 AR00.60-P-1002LWG
    Model 231 AR00.60-P-1000TX
    Model 216, 221 AR00.60-P-1000SX
    Model 251 AR00.60-P-1000RT
    Model 217, 222 AR00.60-P-1000LF
    Model 172 AR00.60-P-1000V
    Model 166, 292 AR00.60-P-1000GZ
    Model 117, 156, 176, 242, 246 AR00.60-P-1000AK
REFER TO SPECIAL TOOLS 000 588 00 80 00 Vehicle lift   WS00.00-P-0040B
    SPECIAL TOOL Adapter kit Fig 5
2 Expose installation space of the corresponding brake line (2).
3 Clean respective brake line connections. NOTES
Before opening the hydraulic system, the area surrounding the connecting points should be thoroughly cleaned.
Otherwise minute dirt particles in the hydraulic component parts can result in malfunctions and total failure of the hydraulic system.
IMPORTANT Only use clean, lint free rags and cleaner free of mineral oil.
Do not use any compressed air for cleaning when the brake system is open.
Assembly cleaner		 *BR00.45-Z-1028-04A
4 Remove respective brake line (2) or section of brake line (2). IMPORTANT Brake lines (2) from the master brake cylinder to the hydraulic unit and the brake lines (2) with flexible portion must always be completely replaced.
IMPORTANT Model 204
Partial replacement is only permissible with brake lines (2) with a line diameter of 4.75 mm (d) (wheel line).
For brake lines (2) with a line diameter of 4.75 mm (d) (wheel line) two additional connecting points per brake line (2) are permissible.
5 Seal respective connection fittings and brake lines (2) with suitable stop plugs. SPECIAL TOOL Record plug Figure
  Prepare brake line (2) with line diameter 4.75 mm (d) and plastic-coated brake lines (2) with line diameter 4.95 mm and 5.25 mm
6 Match length of new brake line (2) to old brake line (2) with the pipe cutter. SPECIAL TOOL Flaring tool Fig 2
7 Separate new brake line (2) into sections using pipe cutter. Model 204
If required for installation.
IMPORTANT Two connecting points per new brake line (2) are permissible.
IMPORTANT The connecting point must be in perfect condition and it must not be soiled.
SPECIAL TOOL Flaring tool		 Fig 2
8 Slide retaining screws (1) onto brake line (2). IMPORTANT Use specified line connectors only.
9 Make flange on brake line (2). IMPORTANT Make F-flange 115° (a) in accordance with DIN 74234. AR42.10-P-0027-01D
    TORQUE SPECIFICATION Screw, clamping plate to flanging tool kit *BA42.00-P-1003-05A
    TORQUE SPECIFICATION Stamp holder in flanging tool kit (post-flanging) *BA42.00-P-1002-05A
    TORQUE SPECIFICATION Stamp holder in flanging tool kit (pre-flanging) *BA42.00-P-1001-05A
    ATE brake cylinder paste, article no.: 03.99020501.2 *BR00.45-Z-1078-06A
    SPECIAL TOOL Flaring tool Fig 2*
10 Adapt new brake line (2) with a bending tool so that it follows the routing path of the old brake line (2). IMPORTANT The bending radius must not be less than 13 mm.
SPECIAL TOOL Flaring tool		 Fig 2
INSTALLING Install
11 Install new brake line (2).
Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		 IMPORTANT When routing the brake line (2) make sure there is sufficient distance to other components. There must be no stress, kinking and line narrowing.
IMPORTANT Use specified line connectors only.		 AH00.00-P-0015-01CW
    TORQUE SPECIFICATION Model 221 (except 221.074/077/174/177/179) Union nut, brake line to T-piece *BA42.10-P-1009-04K
    TORQUE SPECIFICATION Models 213, 238, 257 Retaining screw, brake line to threaded socket *BA42.10-P-1005-04P
    TORQUE SPECIFICATION Models 213, 238, 257 Retaining screw, brake line to hydraulic unit *BA42.10-P-1004-04P
    TORQUE SPECIFICATION Models 213, 238, 257 Retaining screw, brake line to master brake cylinder *BA42.10-P-1003-04P
    TORQUE SPECIFICATION Model 166, 292 Brake pipe to master brake cylinder *BA42.10-P-1003-04J
    TORQUE SPECIFICATION Model 216, 221 Union nut, brake line to brake caliper *BA42.10-P-1010-04K
    TORQUE SPECIFICATION Model 216, 221 Union nut, brake line to hydraulic unit *BA42.10-P-1004-04K
    TORQUE SPECIFICATION Model 216, 221 Union nut, brake line to master brake cylinder *BA42.10-P-1003-04K
    TORQUE SPECIFICATION Model 205, 253 Retaining screw, brake line to threaded socket *BA42.10-P-1005-04O
    TORQUE SPECIFICATION Model 205, 253 Retaining screw, brake line to hydraulic unit *BA42.10-P-1004-04O
    TORQUE SPECIFICATION Model 205, 253 Retaining screw, brake line to master brake cylinder *BA42.10-P-1003-04O
    TORQUE SPECIFICATION Model 217, 222 Retaining screw, brake line to brake line (connecting point) *BA42.10-P-1008-04N
    TORQUE SPECIFICATION Model 217, 222 Retaining screw, brake line to threaded socket *BA42.10-P-1005-04N
    TORQUE SPECIFICATION Model 217, 222 Retaining screw, brake line to hydraulic unit *BA42.10-P-1004-04N
    TORQUE SPECIFICATION Model 217, 222 Retaining screw, brake line to master brake cylinder *BA42.10-P-1003-04N
    TORQUE SPECIFICATION Model 117, 156, 172, 176, 204, 207, 212, 218, 231, 242, 246 Retaining screw, brake line to threaded socket *BA42.10-P-1005-04L
    TORQUE SPECIFICATION Model 117, 156, 172, 176, 204, 207, 212, 218, 231, 242, 246 Retaining screw, brake line to hydraulic unit *BA42.10-P-1004-04L
    TORQUE SPECIFICATION Model 117, 156, 172, 176, 204, 207, 212, 218, 231, 242, 246 Retaining screw, brake line to master brake cylinder *BA42.10-P-1003-04L
    TORQUE SPECIFICATION Model 177 Retaining screw, brake line to threaded socket *BA42.10-P-1003-04Q
    TORQUE SPECIFICATION Model 177 Retaining screw, brake line to master brake cylinder *BA42.10-P-1002-04Q
    TORQUE SPECIFICATION Model 177 Retaining screw, brake line to hydraulic unit *BA42.10-P-1001-04Q
    TORQUE SPECIFICATION Model 251 Brake pipe to master brake cylinder *BA42.10-P-1003-14A
    TORQUE SPECIFICATION Model 251 Brake line to floating brake caliper *BA42.10-P-1001-14A
    TORQUE SPECIFICATION Model 251 Brake line to brake hose *BA42.10-P-1002-14A
    TORQUE SPECIFICATION Models 213, 238, 257 Retaining screw, brake line to brake hose *BA42.10-P-1001-04P
    TORQUE SPECIFICATION Model 177 Retaining screw, brake line to brake hose *BA42.10-P-1004-04Q
    TORQUE SPECIFICATION Model 217, 222 Retaining screw, brake line to brake hose *BA42.10-P-1001-04N
    TORQUE SPECIFICATION Model 205, 253 Retaining screw, brake line to brake hose *BA42.10-P-1001-04O
    TORQUE SPECIFICATION Model 117, 156, 172, 176, 204, 207, 212, 218, 231, 242, 246 Retaining screw, brake line to brake hose *BA42.10-P-1001-04L
    TORQUE SPECIFICATION Model 216, 221 Retaining screw, brake line to brake hose *BA42.10-P-1001-04K
    TORQUE SPECIFICATION Model 166, 292 Brake line to brake hose *BA42.10-P-1002-04J
    SPECIAL TOOL Adapter coupling Fig 1
    SPECIAL TOOL Torque tool set Fig 3
INSPECT Check
12 Check surface of new brake line (2) for damage as a result of scratches and paint damage. If necessary,
↓
Repair paint damage.
Zinc dust paint spray can		 *BR00.45-Z-1055-07A
13 Apply coating of wax to new brake line (2). IMPORTANT Use commercially available wax.
14 Bleed brake system. Model 257 AR42.10-P-0010FR
    Model 177 AR42.10-P-0010MFA
    Model 213, 238 AR42.10-P-0010-02LWE
    Model 205, 253 AR42.10-P-0010LW
    Model 217, 222 AR42.10-P-0010LF
    Model 231 AR42.10-P-0010RK
    Model 166, 172, 204, 292 AR42.10-P-0010CW
    Model 207, 212, 218 AR42.10-P-0010EW
    Model 117, 156, 176, 242, 246 AR42.10-P-0010NKB
    Model 251 AR42.10-P-0010RT
    Model 216, 221 AR42.10-P-0010SX
INSPECT Check
15 Perform brake test on test stand.
REFER TO MAINTENANCE     AP42.00-P-4290BA
TIGHTENING TORQUES FOR TOOLS

Number Designation Model all (CAR)
BA42.00-P-1001-05A Stamp holder in flanging tool kit (pre-flanging) Nm 20
TIGHTENING TORQUES FOR TOOLS

Number Designation Model all (CAR)
BA42.00-P-1002-05A Stamp holder in flanging tool kit (post-flanging) Nm 40
TIGHTENING TORQUES FOR TOOLS

Number Designation Model all (CAR)
BA42.00-P-1003-05A Screw, clamping plate to flanging tool kit Nm 15
BRAKE LINES, BRAKE HOSES

Number Designation Model 216 (except 216.374/377/379) Model 216.374/377/379
BA42.10-P-1001-04K Retaining screw, brake line to brake hose Nm 17 17
BRAKE LINES, BRAKE HOSES

Number Designation Model 221 (except 221.074/077/174/177/179) Model 221.074/077/174/177/179
BA42.10-P-1001-04K Retaining screw, brake line to brake hose Nm 17 17
BRAKE LINES, BRAKE HOSES

Number Designation Model 117 Model 156
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 172 Model 176
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 204 Model 207
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 212 (except 212.076/092/276/292) Model 212.076/092/276/292
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 218 (except 218.376/392/976/992) Model 218.376/392/976/992
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 231 Model 242
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 246
BA42.10-P-1001-04L Retaining screw, brake line to brake hose Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 217.364/382/384/385/482 Model 217.377/378/379/477/478/479
BA42.10-P-1001-04N Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 222 (except 222.077/177/178/179/187/188) Model 222.077/177/178/179/187/188
BA42.10-P-1001-04N Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) Model 205.086/087/286/287/386/387/486/487
BA42.10-P-1001-04O Retaining screw, brake line to brake hose Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 253
BA42.10-P-1001-04O Retaining screw, brake line to brake hose Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 213 except code B07 (Ceramic brake system) Model 213 with code B07 (Ceramic brake system)
BA42.10-P-1001-04P Retaining screw, brake line to brake hose Nm 14 14
BRAKE LINES, BRAKE HOSES

Number Designation Model 238 Model 257
BA42.10-P-1001-04P Retaining screw, brake line to brake hose Nm 14 14
BRAKE LINES

Number Designation Model 177
BA42.10-P-1001-04Q Retaining screw, brake line to hydraulic unit Nm 16
BRAKE HOSES, BRAKE LINES

Number Designation Model 251
BA42.10-P-1001-14A Brake line to floating brake caliper Nm 22
BRAKE LINES, BRAKE HOSES

Number Designation Model 166 Model 292
BA42.10-P-1002-04J Brake line to brake hose Nm 14 14
BRAKE LINES

Number Designation Model 177
BA42.10-P-1002-04Q Retaining screw, brake line to master brake cylinder Nm 16
BRAKE HOSES, BRAKE LINES

Number Designation Model 251
BA42.10-P-1002-14A Brake line to brake hose Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 166 Model 292
BA42.10-P-1003-04J Brake pipe to master brake cylinder Nm 18 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 216 (except 216.374/377/379) Model 216.374/377/379
BA42.10-P-1003-04K Union nut, brake line to master brake cylinder Nm 17 17
BRAKE LINES, BRAKE HOSES

Number Designation Model 221 (except 221.074/077/174/177/179) Model 221.074/077/174/177/179
BA42.10-P-1003-04K Union nut, brake line to master brake cylinder Nm 17 17
BRAKE LINES, BRAKE HOSES

Number Designation Model 117 Model 156
BA42.10-P-1003-04L Retaining screw, brake line to master brake cylinder ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 172 Model 176
BA42.10-P-1003-04L Retaining screw, brake line to master brake cylinder ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 204 Model 207
BA42.10-P-1003-04L Retaining screw, brake line to master brake cylinder ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 212 (except 212.076/092/276/292) Model 212.076/092/276/292
BA42.10-P-1003-04L Retaining screw, brake line to master brake cylinder ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 218 (except 218.376/392/976/992) Model 218.376/392/976/992
BA42.10-P-1003-04L Retaining screw, brake line to master brake cylinder ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 231 Model 242
BA42.10-P-1003-04L Retaining screw, brake line to master brake cylinder ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 246
BA42.10-P-1003-04L Retaining screw, brake line to master brake cylinder ø4.75 Nm 16
ø6 Nm 16
ø8 Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 217.364/382/384/385/482 Model 217.377/378/379/477/478/479
BA42.10-P-1003-04N Retaining screw, brake line to master brake cylinder ø4.75 Nm 18 18
ø6 Nm 16 16
ø8 Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation Model 222 (except 222.077/177/178/179/187/188) Model 222.077/177/178/179/187/188
BA42.10-P-1003-04N Retaining screw, brake line to master brake cylinder ø4.75 Nm 18 18
ø6 Nm 18 18
ø8 Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) Model 205.086/087/286/287/386/387/486/487
BA42.10-P-1003-04O Retaining screw, brake line to master brake cylinder ø 4.75 mm Nm 18 18
ø 6.00 mm Nm 18 18
ø 8.00 mm Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation Model 253
BA42.10-P-1003-04O Retaining screw, brake line to master brake cylinder ø 4.75 mm Nm 16
ø 6.00 mm Nm 16
ø 8.00 mm Nm -
BRAKE LINES, BRAKE HOSES

Number Designation Model 213 except code B07 (Ceramic brake system) Model 213 with code B07 (Ceramic brake system)
BA42.10-P-1003-04P Retaining screw, brake line to master brake cylinder Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 238 Model 257
BA42.10-P-1003-04P Retaining screw, brake line to master brake cylinder Nm 16 16
BRAKE LINES

Number Designation Model 177
BA42.10-P-1003-04Q Retaining screw, brake line to threaded socket Nm 14
BRAKE HOSES, BRAKE LINES

Number Designation Model 251
BA42.10-P-1003-14A Brake pipe to master brake cylinder Nm 18
BRAKE LINES, BRAKE HOSES

Number Designation Model 216 (except 216.374/377/379) Model 216.374/377/379
BA42.10-P-1004-04K Union nut, brake line to hydraulic unit Nm 17 17
BRAKE LINES, BRAKE HOSES

Number Designation Model 221 (except 221.074/077/174/177/179) Model 221.074/077/174/177/179
BA42.10-P-1004-04K Union nut, brake line to hydraulic unit Nm 17 17
BRAKE LINES, BRAKE HOSES

Number Designation Model 117 Model 156
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 172 Model 176
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 204 Model 207
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 212 (except 212.076/092/276/292) Model 212.076/092/276/292
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 218 (except 218.376/392/976/992) Model 218.376/392/976/992
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 231 Model 242
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 246
BA42.10-P-1004-04L Retaining screw, brake line to hydraulic unit ø4.75 Nm 16
ø6 Nm 16
ø8 Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 217.364/382/384/385/482 Model 217.377/378/379/477/478/479
BA42.10-P-1004-04N Retaining screw, brake line to hydraulic unit ø4.75 Nm 16 16
ø6 Nm 16 16
ø8 Nm - -
BRAKE LINES, BRAKE HOSES

Number Designation Model 222 (except 222.077/177/178/179/187/188) Model 222.077/177/178/179/187/188
BA42.10-P-1004-04N Retaining screw, brake line to hydraulic unit ø4.75 Nm 18 18
ø6 Nm 18 18
ø8 Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) Model 205.086/087/286/287/386/387/486/487
BA42.10-P-1004-04O Retaining screw, brake line to hydraulic unit ø 4.75 mm Nm 18 18
ø 6.00 mm Nm 18 18
ø 8.00 mm Nm 24 24
BRAKE LINES, BRAKE HOSES

Number Designation Model 253
BA42.10-P-1004-04O Retaining screw, brake line to hydraulic unit ø 4.75 mm Nm 16
ø 6.00 mm Nm 16
ø 8.00 mm Nm -
BRAKE LINES, BRAKE HOSES

Number Designation Model 213 except code B07 (Ceramic brake system) Model 213 with code B07 (Ceramic brake system)
BA42.10-P-1004-04P Retaining screw, brake line to hydraulic unit Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 238 Model 257
BA42.10-P-1004-04P Retaining screw, brake line to hydraulic unit Nm 16 16
BRAKE LINES

Number Designation Model 177
BA42.10-P-1004-04Q Retaining screw, brake line to brake hose Nm 14
BRAKE LINES, BRAKE HOSES

Number Designation Model 117 Model 156
BA42.10-P-1005-04L Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 172 Model 176
BA42.10-P-1005-04L Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 204 Model 207
BA42.10-P-1005-04L Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 212 (except 212.076/092/276/292) Model 212.076/092/276/292
BA42.10-P-1005-04L Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 218 (except 218.376/392/976/992) Model 218.376/392/976/992
BA42.10-P-1005-04L Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 231 Model 242
BA42.10-P-1005-04L Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 246
BA42.10-P-1005-04L Retaining screw, brake line to threaded socket Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 217.364/382/384/385/482 Model 217.377/378/379/477/478/479
BA42.10-P-1005-04N Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 222 (except 222.077/177/178/179/187/188) Model 222.077/177/178/179/187/188
BA42.10-P-1005-04N Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) Model 205.086/087/286/287/386/387/486/487
BA42.10-P-1005-04O Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 253
BA42.10-P-1005-04O Retaining screw, brake line to threaded socket Nm 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 213 except code B07 (Ceramic brake system) Model 213 with code B07 (Ceramic brake system)
BA42.10-P-1005-04P Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 238 Model 257
BA42.10-P-1005-04P Retaining screw, brake line to threaded socket Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 217.364/382/384/385/482 Model 217.377/378/379/477/478/479
BA42.10-P-1008-04N Retaining screw, brake line to brake line (connecting point) Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 222 (except 222.077/177/178/179/187/188) Model 222.077/177/178/179/187/188
BA42.10-P-1008-04N Retaining screw, brake line to brake line (connecting point) Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 221 (except 221.074/077/174/177/179)
BA42.10-P-1009-04K Union nut, brake line to T-piece Nm 17
BRAKE LINES, BRAKE HOSES

Number Designation Model 221 (except 221.074/077/174/177/179)
BA42.10-P-1010-04K Union nut, brake line to brake caliper Nm 17
Fig 1: Identifying Adapter Coupling (001 589 00 16 00)
G10251119Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Flaring Tool (000 589 20 99 00)
G12083228Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Torque Tool Set (003 589 05 09 00)
G07687787Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Adapter Kit (203 589 02 31 00)
G09981256Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
BR00.45-Z-1055-07A Zinc dust paint spray can A 000 986 82 42 09
BR00.45-Z-1078-06A ATE brake cylinder paste, article no.: 03.99020501.2 ATE, a brand of the Continental Corporation
scientia non olet · About LEMON Manuals
