Remove/install charge air cooler - AR09.41-P-6817OGR
ENGINE 642, 651 in MODEL 166
| Remove/install | |||
| 1 | Remove charge air hose upstream of the charge air cooler (1) at the charge air cooler (1) | ENGINE 651 | AR09.41-P-8619CD |
| ENGINE 642 | AR09.41-P-8621OGR | ||
| 2 | Remove charge air hose downstream of the charge air cooler (1) at the charge air cooler (1) | ENGINE 651 | AR09.41-P-8619CD |
| ENGINE 642 | AR09.41-P-8625OGR | ||
| 3 | Remove front bumper | AR88.20-P-2000GQ | |
| 4 | Remove console (4) | ||

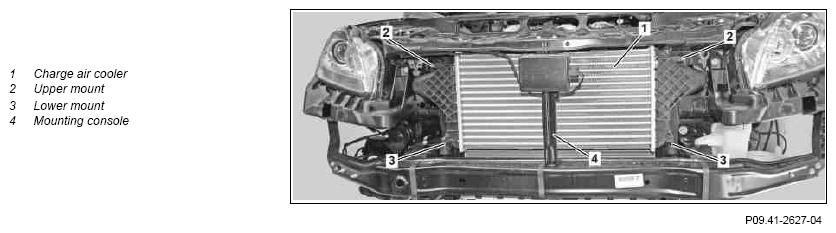

| 5 | Pull charge air cooler (1) out of the upper mount (2) | ||
| 6 | Tilt charge air cooler (1) towards the front and remove from bumper (3) | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Test run engine and check for leaks |
